SAFETY
from Gehl DL SERIES GEN2 Dynalift DL7 DL9 DL11 DL12 Telescopic Handler Operator's Manual 50960102 - PDF
4.Install the replacement batteries in the holder taking care to position the battery terminals as shown in the diagram at the bottom of the battery holder.
5.Replace the cover and install the screws to secure the cover in place.
Work Platform Design Requirements
(Per ANSI/ITSDF B56.6-2016, Sec. 8.24)
1.A structural safety factor for the personnel work platform of not less than 2:1 for ductile materials (based on minimum yield strength) and 5:1 for non-ductile materials (based on minimum ultimate strength) used for all load supporting structural elements and personnel work platform attachment means.
2.The personnel work platform shall have a floor with a slip resistant and self-draining surface. Any opening in the floor or between the floor and the toe board shall be dimensioned so as to prevent the passage of a .59 inches (15 mm) diameter sphere. Trap doors in the floor of the personnel work platform are not permitted.
3.If the distance from ground level to the floor of the personnel work platform exceeds 15.75 inches (400 mm), the personnel work platform shall be equipped with an access ladder. This distance shall be determined when the rough terrain forklift truck is on a level surface, and the personnel work platform is in the fully lowered position on the lifting means. The steps or rungs of the ladder, and the handholds or handrails of the ladder shall conform to the requirements of ISO 2867. The ladder shall align with the access opening to the personnel work platform.

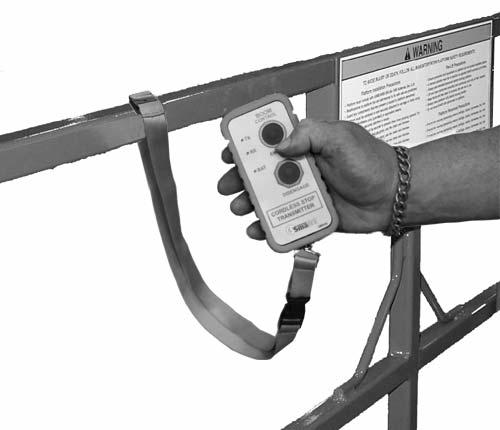

Wireless Remote Battery Replacement
1.Remove the four screws from the cover of the wireless remote.
2.Open the cover to gain access to the batteries.
3.Remove the batteries from their holders.
4.The personnel work platform shall not allow any portion of the fork tips with which the personnel work platform is intended to be used to protrude beyond any part of the personnel work platform.
5.The minimum space required for each person allowed on the personnel work platform as stated on the personnel work platform nameplate shall not be less than 19.68 x 19.68 inches (500 mm x 500 mm).
