INSTALLATION

Attaching Eq Uipment

(GLOBAL CARRIER SERIES LOADERS)

(Root Grapple without optional parking stands)

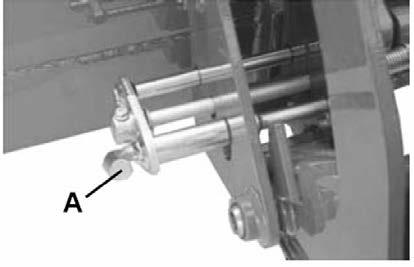

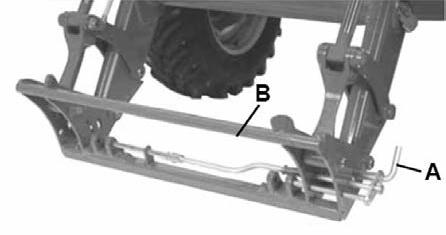

1.To prepare the loader for attachment, pull and rotate handle to open latch (A).

2.Extend attachment cylinders to angle attaching brackets forward.

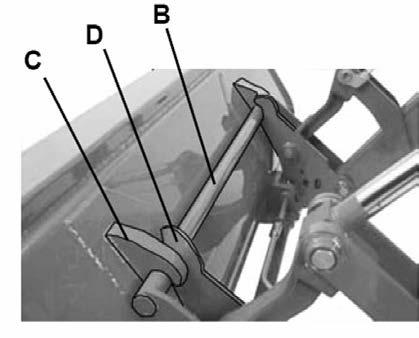

3.Drive forward, adjusting loader height and position until the bar (B) is under hooks (C) and tabs (D) are on the center side of the hooks.

4.Raise loader and retract tilt cylinders until latch closes.

5.Retract bucket cylinders and raise loader until main frame of root grapple is vertical.

6.Lower attachment, shut off engine and remove key. Connect hydraulic hoses to the auxiliary hydraulic hook up on your loader or to rear tractor remote outlets.

7.Lower the grapple clamp arms.Installation is now complete.

Attaching Eq Uipment

(Root Grapple equipped with optional parking stands)

1.To prepare the loader for attachment, pull and rotate handle to open latch (A).

2.Extend attachment cylinders to angle attaching brackets forward.

3.Drive forward, adjusting loader height and position until the bar (B) is under hooks (C) and tabs (D) are on the center side of the hooks.

4.Raise loader and retract tilt cylinders until latch closes.

5.Pin the parking stands in the raised position.

6.Lower attachment, shut off engine, and connect hydraulic hoses (if equipped) to the auxiliary hydraulic hook up on your loader.Installation is now complete.

NOTE:Latch automatically closes on global carrier.

CAUTION! ALWAYS CHECK LATCH PINS BEFORE TILTING OR OPERATING ANY ATTACHMENT.
