Two Position Selector Valve

Constant air pressure is supplied from the slave valve to the A-3546 range valve “S” port (1).

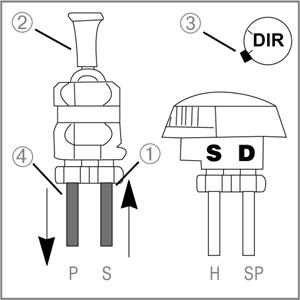

For LO range (range knob down (2), selector valve button in the “DIR” position (3), air flows out of the range valve “P” port (4).

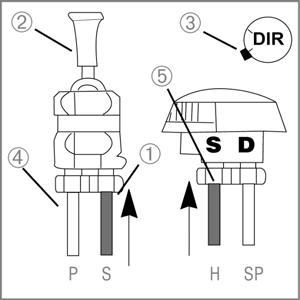

For direct operation (range knob up (2), selector valve button in the “DIR” position (3), the knob prevents the air from passing through the selector valve: air now flows through the “H” port and into the selector valve (5).

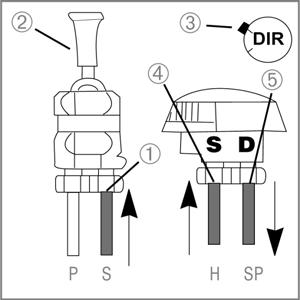

For Underdrive and Overdrive operation (range knob up (2), selector valve button in the forward position (3) air flows through the selector valve “H” port (4) and out the “SP” port (5).
