Remove the right side cab skirt
from CNH Valve Conversion Two Spool Joystick to Three Spool 621F W130C Wheel Loader Instructions Manual

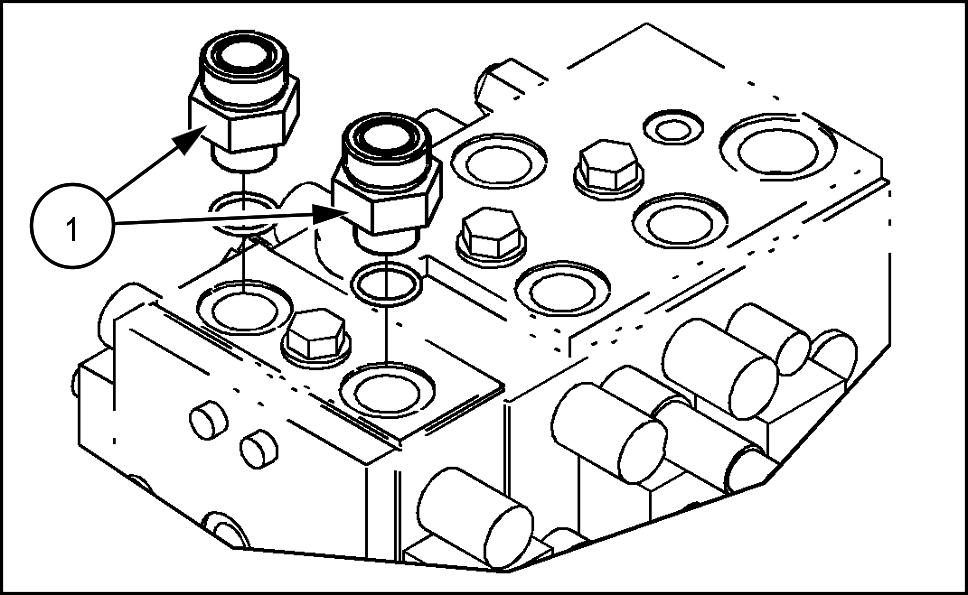

the top the main control valve insert the two straight connectors (1) . NOTE: O- rings shown are part the connectors.
Insert the straight connector (A) then the 90° elbow (B) each side the valve block. T urn the elbow face toward the rear the machine.
Attach the right pilot spool hose (P) with the yellow and white ties, the 90° elbow the right side the valve block. Attach the left pilot spool hose (Q) with the red and white ties, the 90° elbow the left side the valve block.
RAIL12WEL1333AA 6
RAPH12WEL1281BA 7
RAPH12WEL1281BA 8
