Install the joystick steering hydraulic tube (44) the ° long elbow (43) .

Next Article
Install the cylinder hydraulic hose (46) the ° elbow

Install the cylinder hydraulic hose (46) the ° elbow

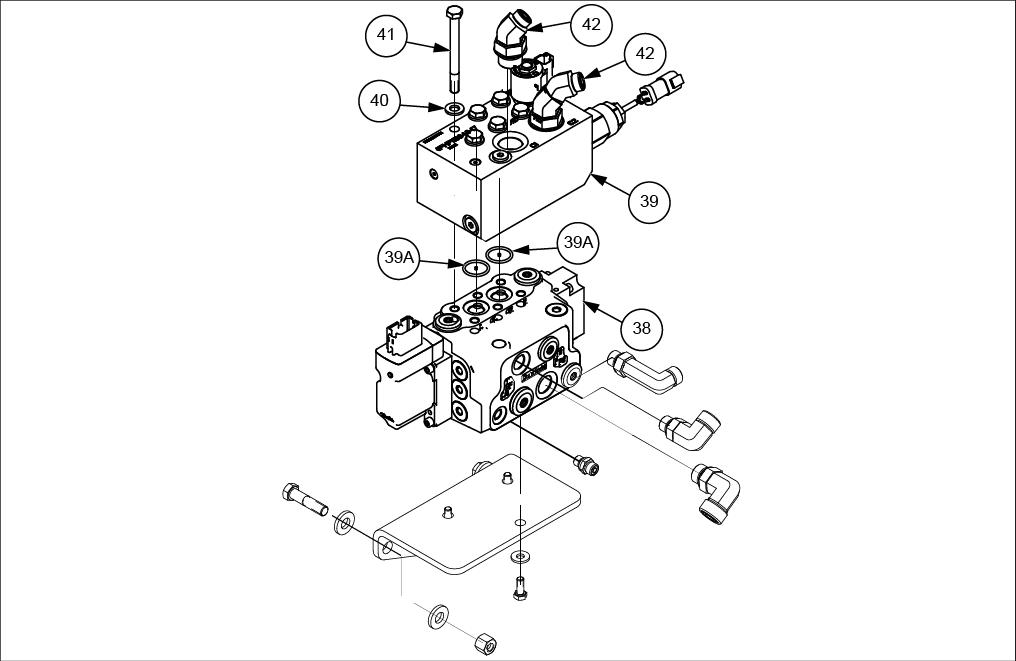

Install the O- rings (39A) supplied with the JSS cut - f valve (39) the and the ports the steering EHPS valve (38) . Install the JSS cut - f valve (39) the steering EHPS valve (38) . Secure with the six bolts M10x105 (41) and the six washers 1 1x21x2.5 (40) . Install the ° elbows (42) the and the ports the JSS cut - f valve (39) .

LEIL19WHL0756FB 3
