Install the tank hydraulic hose (18) the ° elbow

from CNH Joystick Steering Kit with Secondary Electrical - 921G W230D Wheel Loader Instructions Manual

Install the JSS pressure hose (12) the ° elbow

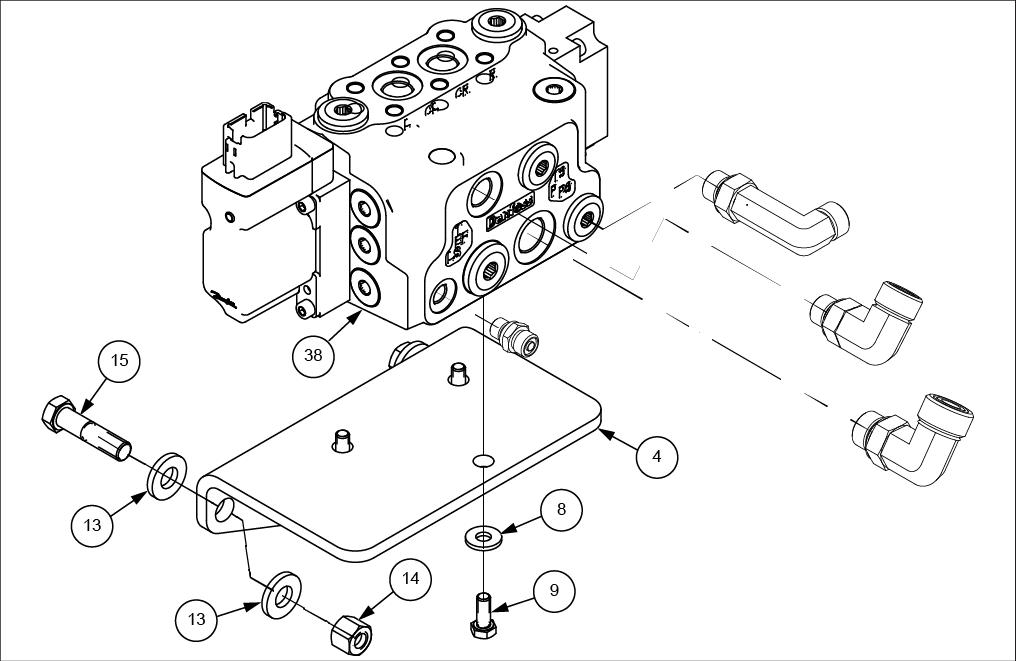

Install the steering EHPS valve (38) the JSS valve bracket (4) . Secure with the three bolts M8x20 (9) and the three washers 9x21x2.5 (8) . Install the valve JSS valve bracket (4) the left - hand sidewall the rear chassis frame. Secure with the three bolts M12x50 (15) , the six washers 13.5x28x4 (13) and the three nuts M12 (14) .

LEIL19WHL0755FB 2

Install the tank hydraulic hose (18) the ° elbow

Next Article

Install the JSS pressure hose (12) the ° elbow

More articles from this publication:

Install the JSS pressure hose (12) the ° elbow

Install the joystick steering hydraulic tube (44) the ° long elbow (43) .

Install the cylinder hydraulic hose (46) the ° elbow
