Install the joystick steering right hydraulic hoses (22 the ° elbows (37) .

Next Article
Install the cut - f pilot tank hydraulic hose (24) the ° elbow (32) .

Install the cut - f pilot tank hydraulic hose (24) the ° elbow (32) .

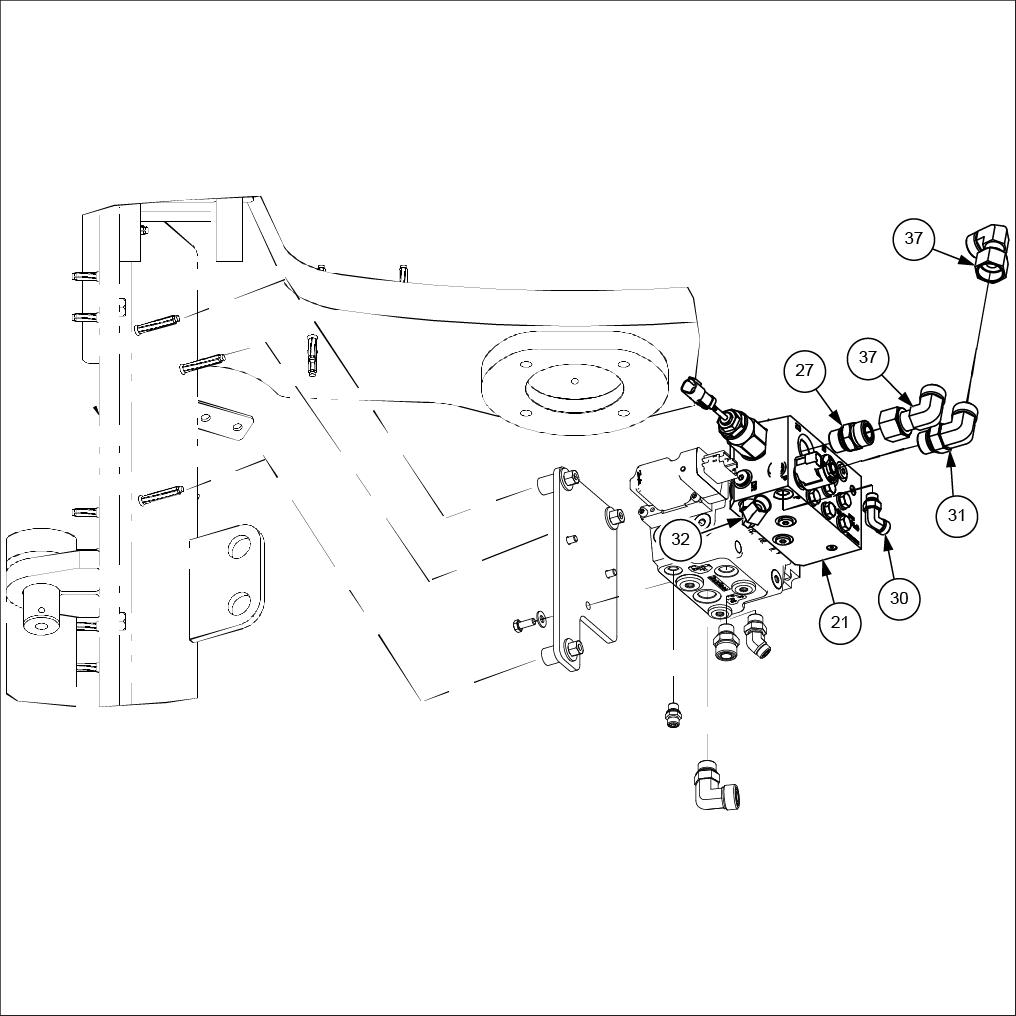

10. Install the ° elbow (32) the port and the ° elbow (30) the P port the JSS cut - f valve (21) . 1 Install the ° elbow (31) the port and the straight connector (27) the port the JSS cut - f valve (21) . 12. Install the ° elbows (37) the ° elbow (31) and the straight connector (27) .

LEIL20WHL0444GB 4
