Release of levers
P
O
8
9
Q
C
P
R N P
10 DANGER!
Risk of fatal injury. If bale twister falls accidentally, this can cause serious injury. ☞There must be no one in bale twister swivel area when it is triggered by control box.
• Press emergency stop switch to clamp wrapper and make it safe.
DANGER!
Damage to bale twister. ☞Do not transport wrapping baler when bale twister is not set in safety position.
–Stop tractor engine. –Remove ignition key. (Fig.6,7,8,9)
Release of levers

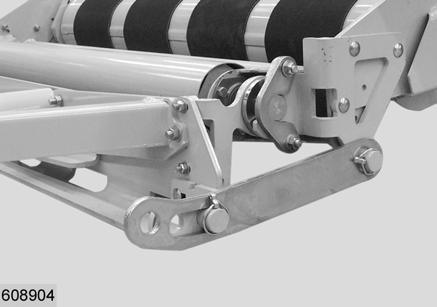

–Remove spring clips (P) to release levers (N). –Slide right and left levers (N) away from pins of right (Q) and left (R) holders and from hinge pins(C). (Fig.10,11)
P N
