Adjusting the concaves .................................................... 8

U

S

B 4

Dimensions for U-piece (Self-sourced) A = 46 mm B = 30 mm C = 38 mm D = approx. 70 mm E = 7 mm F = ∅ 4 mm (Fig.4)

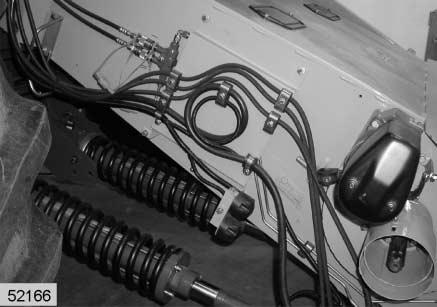

Unscrew the mounting clip (B) and cable clip (S). Unscrew the electrical cable at (A). (Fig.5,6)

Unscrew the retainer plate (H). Place the cable and hydraulic hoses down on the operator’s platform. (Fig.7)

5

A

H 6

7

K

N C

R

M

B

I

L

G

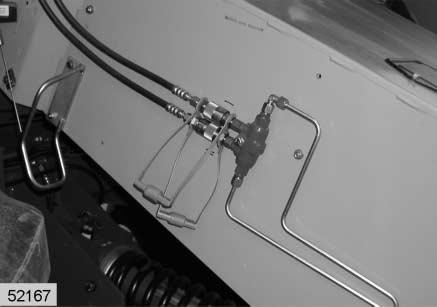

Unscrew the quick release couplings (K) and the hydraulic hoses and place them on the operator’s platform too. (Fig.8)

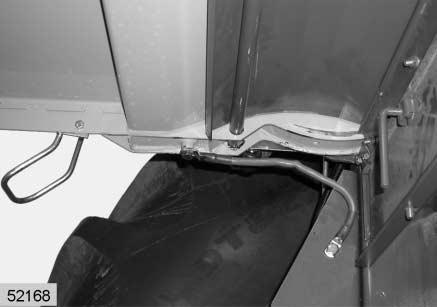

Unscrew the earth cable (M) from the feeder housing. Unscrew the hex. bolt (R) from the rod fastening. Remove the rod (N) and fold the feed plate (C) down. (Fig.9)

Release the bolts (B) and remove. (Fig.10)

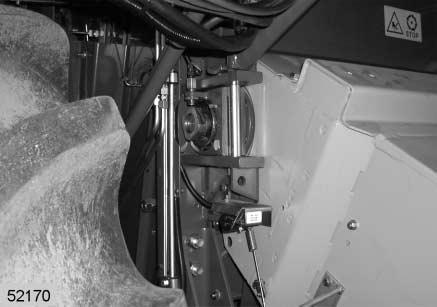

On the right-hand side, remove the magnetic pick-up(I) and the sender (G) for the cutting height indicator. Release the bolts (L) on both sides and remove them. (Fig.11)

8

9

10

11
