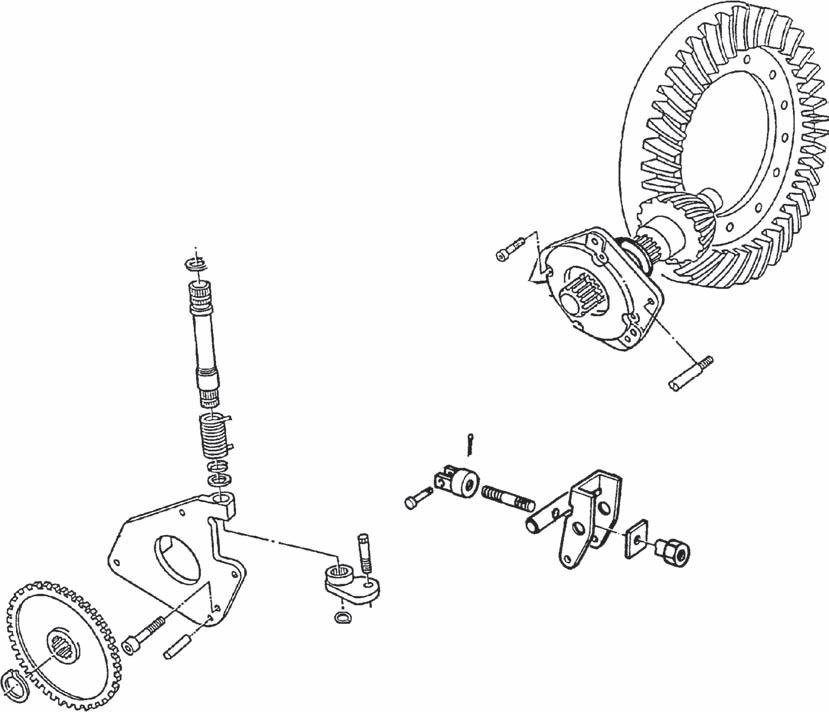

EXPLODED VIEW

2 5 14

15

16

17

18

1 3 4 6 7 6

19

21

7c 7a 7f

362msm38

Description

1 Circlip. 2 Pinion. 3 Screw. 4 Locating pin. 5 Blanking plate. 6 Discs. 7 Mechanism assembly. 7a Plate. 7b Link. 7c Nut. 7d Screw. 7e Spring. 7f Balls. 8 Backplate. 9 Screw. 10 Support plate. 11 Finger. 12 Shim(s). 13 Drive pinion. 14 Seal. 15 Operating shaft. 16 Spring. 17 Locking ring. 18 Washer. 19 Cam. 20 Finger. 21 Circlip.

8 6 9 10 12 13

28

27

20 29

26

25

7d

7b 7e 24

23

22 11

22 Nut. 23 Plate. 24 Link. 25 Pin. 26 Stud. 27 Fork end. 28 Pin. 29 Pin.

Fig. 2
