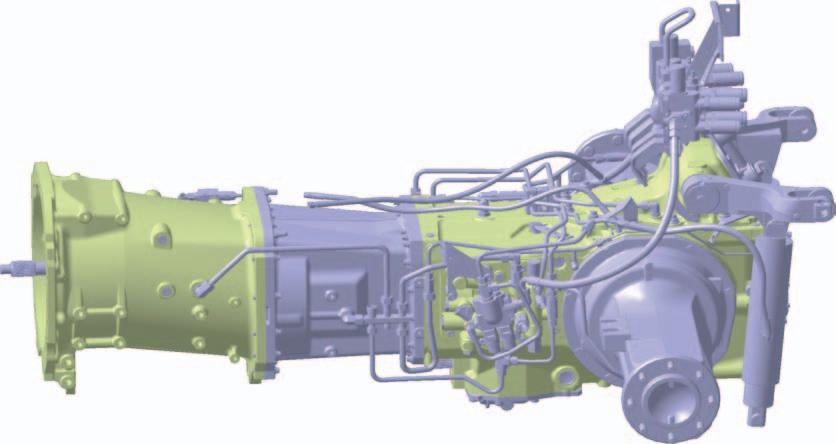

CHECKING THE LUBRICATION FLOW OF THE "REVERSHIFT" CLUTCH AND THE "QUADRISHIFT" SET

Test conditions: – Engine running at 2200 rpm. – Transmission oil temperature: 60°C. – Transmission engaged (tractor made safe on stands). – No actuator activated (spool valves, steeering, PTO, etc.). – Remove the tubing (1) between the lubrication leader and the elbow. – Connect the tester of the kit n°0001783100 and n°0001783200.

HYDRO TE HYDRO TESTERSTER

1

b2000

The flow rate should be about 20 l/min. This flow rate is given in l/min for information.

Fig. 31

Checking the lubrication flow of the lower shaft ranges and reverse transmission shaft

Test conditions: – Engine running at 2200 rpm. – Transmission oil temperature: 60°C. – Transmission engaged (tractor made safe on stands). – No actuator activated (spool valves, steeering, PTO, etc.). – Loosen the tubings on the lubrication leader. – Turn the elbow downwards to facilitate the connection of the tester. – Connect the tester of the kit n°0001783100 and n°0001783200 between the leader and the lubrication elbow.

HYDRO TESHYDRO TE TER TER

b2001

The flow rate should be about 13 l/min. This flow rate is given in l/min for information.

Fig. 32
