COUNTER-REVOLUTION SENSOR

REPLACEMENT

0,50 - 0,70 mm

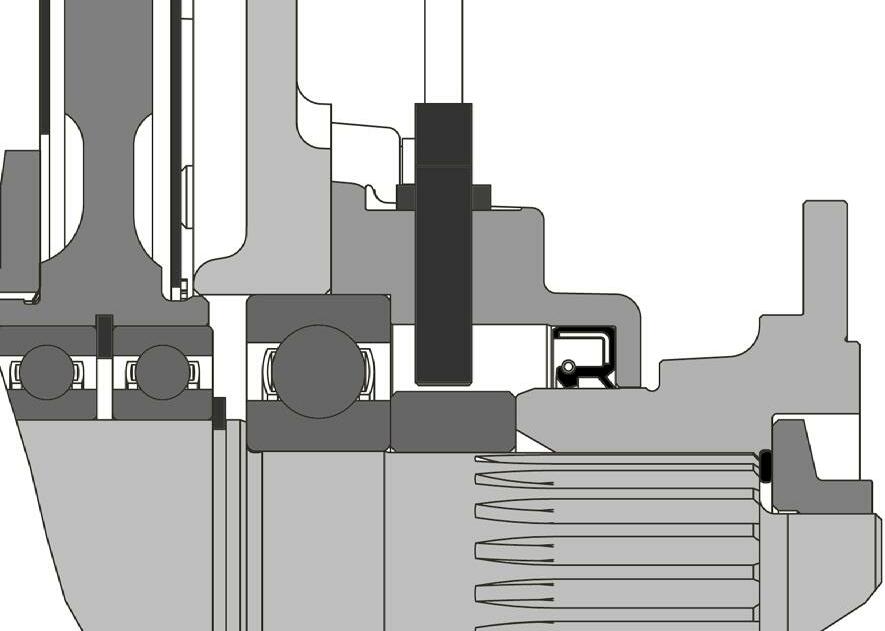

FIGURE 1:

FIGURE 2: Undo the sensor adjuster screw lock nut and the counter-revolution sensor.

FIGURE 3: Replace the counter-revolution sensor if damaged. FIGURE 4: Screw the counter-revolution sensor untill to the contact with the phonic end disk, then loosen the sensor ½ - ¾ turn. Tighten the lock nuts completely.

A

NOTE: Clean the sensor reading zone “A” every oil change and every malfunctioning.
