15.13 Voltage converter

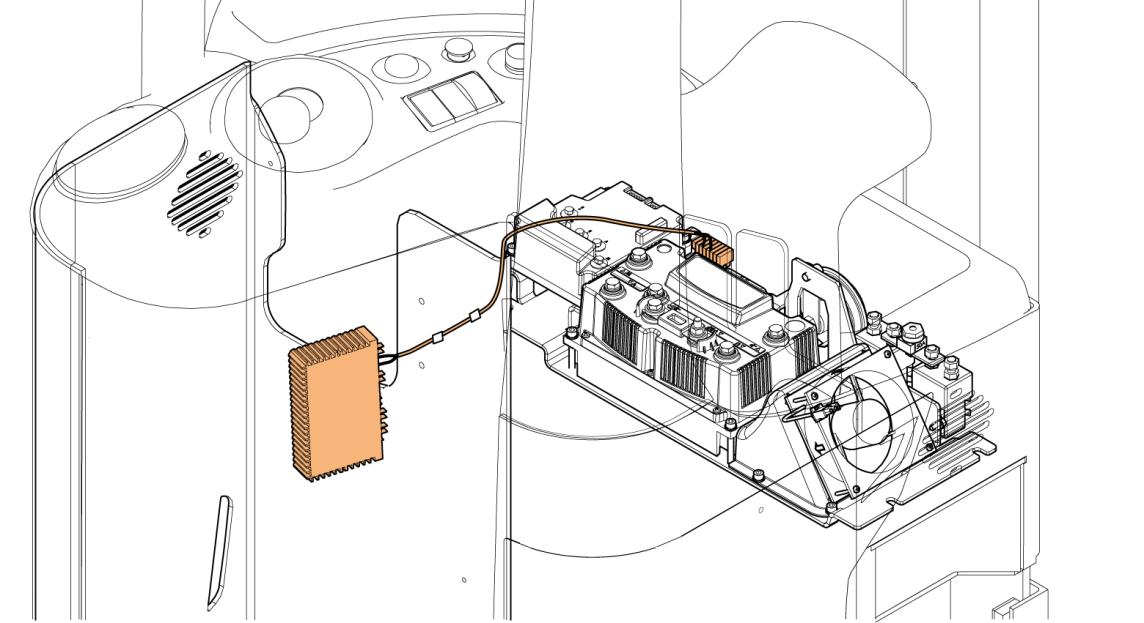

Figure 151. Voltage converter overview

The voltage converter (12 V, 8 A) allows multiple peripherals, such as a PC, a barcode scanner or a label printer, to be connected to the truck's electrical system.

15.13.1 Installation of the voltage converter

CAUTION

Always use the correct schematic diagram for the specific model you are servicing. The latest schematic diagrams are available from the manufacturer’s Web site.

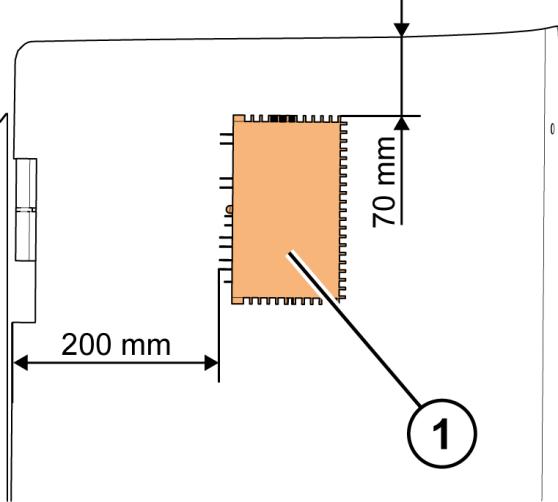

1. Install the voltage converter to the inside of the machinery cover so that its distance is 70 mm from the top of the machinery cover and 200 mm from the hinge-side of the machinery cover.

Copyright© 2013 by MCFE. All rights reserved. Revision: A Document ID: 619098 315 (342)

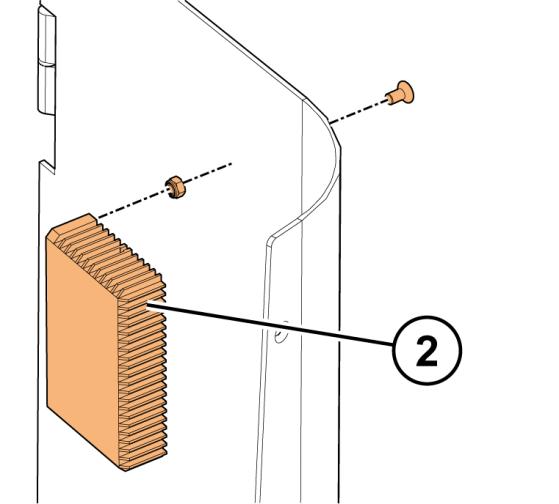

2. Screw the voltage converter into place from the outside of the machinery cover.

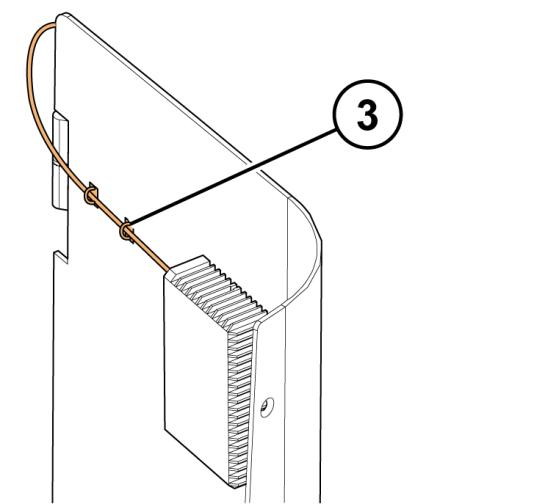

3. Attach the wires of the voltage converter to the machinery cover using 2 stick-on wire clips.

4. Connect the voltage converter wires according to the truck model specific schematic diagram. See Figure 152 below.

Figure 152. Voltage converter wiring overview
