6.1.6 LESS: Large Engine Safety System

6. Control and monitoring system

6.1.6 LESS: Large Engine Safety System

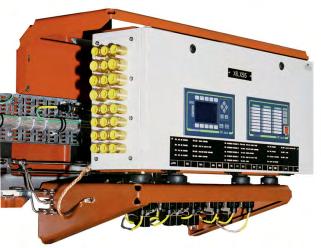

Engine control boxes include

System data

Inputs: 4 fixed automatic shut down + overspeed inputs 4 manual emergency stop inputs 2 separate override inputs 1 remote reset input

Outputs: 3 fuel setting signals (1 x 0-10V DC, 2 x 4-20 mA) 1 overload contact at rated speed 4 speed signals (1 x pulse, 1 x 0-10V DC, 2 x 4-20 mA or 0-10V DC
