Cooling System Coolant Level - Check

Note: Check the threads of the drain plug for damage. Check the sealant on the drain plug for damage. The drain plug can be reused if threads are not damaged and the sealant is not damaged.

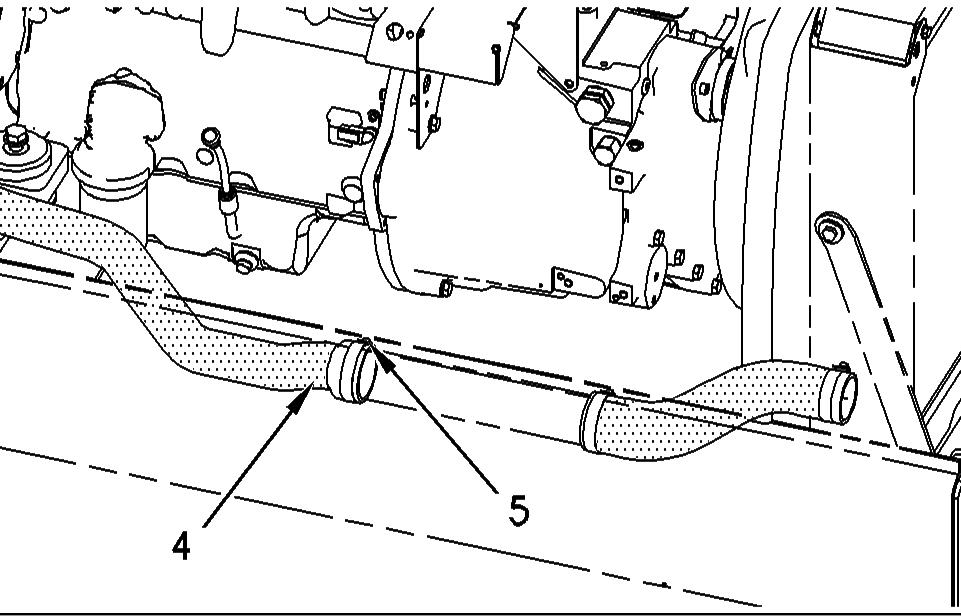

Illustration 215 g00993528

5. Loosen hose clamp (5) that is located on the hydraulic oil cooler. Remove hose (4). Allow the coolant to drain into a suitable container.

Illustration 216 g00993544

6. If the machine is equipped with a cab heater, turn the heater control that is located inside the cab to the HOT position. Loosen hose clamp (6). Remove hose (7). Allow the coolant to drain into a suitable container. 7. Flush the cooling system with clean water until the draining water is transparent. 8. Close drain valve (2). 9. Reinstall coolant drain plug (3) in the engine block above the starter. Tighten the plug. 10. Reinstall hoses (4) and (7). Tighten clamps (5) and (6).

NOTICE

Add the coolant solution at a maximum rate of five

liters per minute. This will reduce the chance of trapping air inside the engine block. A large amount of trapped air can cause localized heating to occur upon start-up. Localized heating may result in engine damage, which may lead to failure of the engine. 11. Add the coolant into the coolant tank. Refer to

Operation and Maintenance Manual, "Capacities (Refill)"

12. Start the engine. Operate the engine without the pressure cap for the coolant tank until the coolant temperature regulator opens and the coolant level stabilizes. 13. Maintain the coolant level up to the FULL mark on the coolant tank. 14. Inspect the gasket of the pressure cap. If the gasket is damaged, replace the cap. 15. Install the pressure cap on the coolant tank. 16. Stop the engine.

Personal injury could result from hot coolant, steam and alkali. At operating temperature, engine coolant is hot and under pressure. The radiator and all lines to heaters or the engine contain hot coolant or steam. Any contact could cause severe burns. Remove filler cap slowly to relieve pressure only when engine is stopped and radiator cap is cool enough to touch with your bare hand. Do not attempt to tighten hose connections when the coolant is hot, the hose can come off causing burns.

Park the machine on level ground. Fully retract the boom and fully lower the boom. Move the transmission control to the NEUTRAL position and ensure that the parking brake is engaged. Shut off the engine.
