Fuel Tank Water and Sediment - Drain

1. In order to open protection cover (3), unlock lock (2) and turn lock (4) counterclockwise. Then, pull latch (1) outward.

Illustration 253 g01204058

2. Locate fuel filler cap (6) and remove the padlock, if equipped. 3. Lift latch (5) and turn the fuel filler cap counterclockwise. This will release the fuel filler cap. 4. Remove fuel filler cap (6) and inspect the fuel filler cap. Replace the fuel filler cap if the fuel filler cap is damaged. 5. Install the fuel filler cap. 6. Install the padlock, if equipped. 7. Close the protection cover.

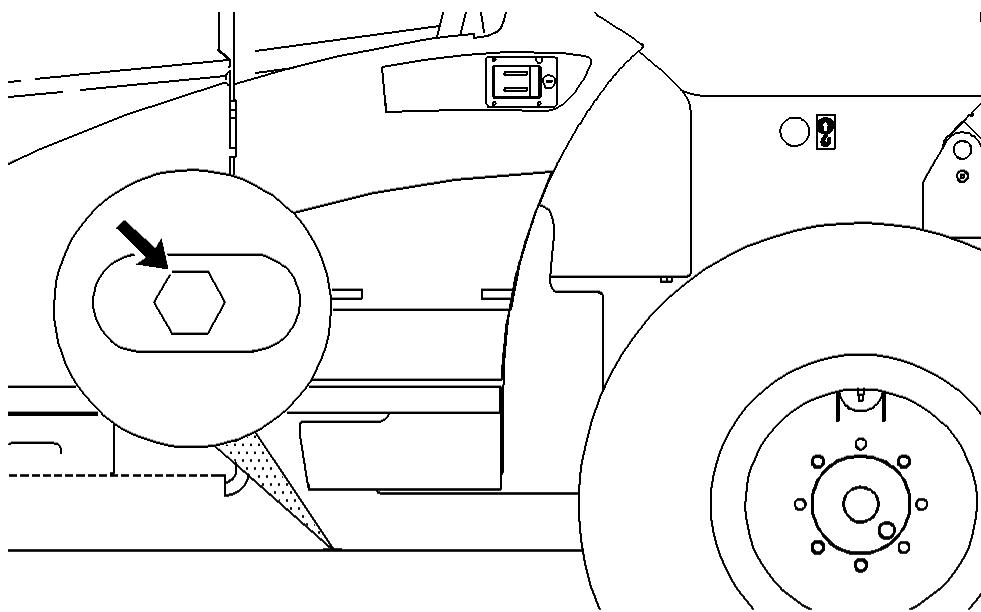

Illustration 255 g00979514

The fuel tank drain plug is located on the bottom of the fuel tank. 1. Loosen the fuel tank drain plug. Do not remove the fuel tank drain plug. Allow the water and the sediment to drain into a suitable container and then tighten the fuel tank drain plug. 2. Add fuel to the fuel tank. Fill the fuel tank at the end of each day of operation. Filling the fuel tank after every day of operation will drive out moist air. Also, filling the fuel tank helps to minimize condensation. Do not fill the fuel tank to the top.

Warm fuel expands and the fuel may overflow if the fuel tank is overfilled. Note: Never allow the fuel tank to run dry.

Personal injury or death could result from failure to adhere to the following procedures. Fuel leaked or spilled onto hot surfaces or electrical components could cause a fire. Clean up all leaked or spilled fuel. Do not smoke while working on the fuel system. Turn the disconnect switch OFF or disconnect the battery when changing fuel filters.

NOTICE Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids. Refer to Special Publication, NENG2500, "Caterpillar Dealer Service Tool Catalog" for tools and supplies suitable to collect and contain fluids on Caterpillar products. Dispose of all fluids according to local regulations and mandates.
