Entering the Gate End

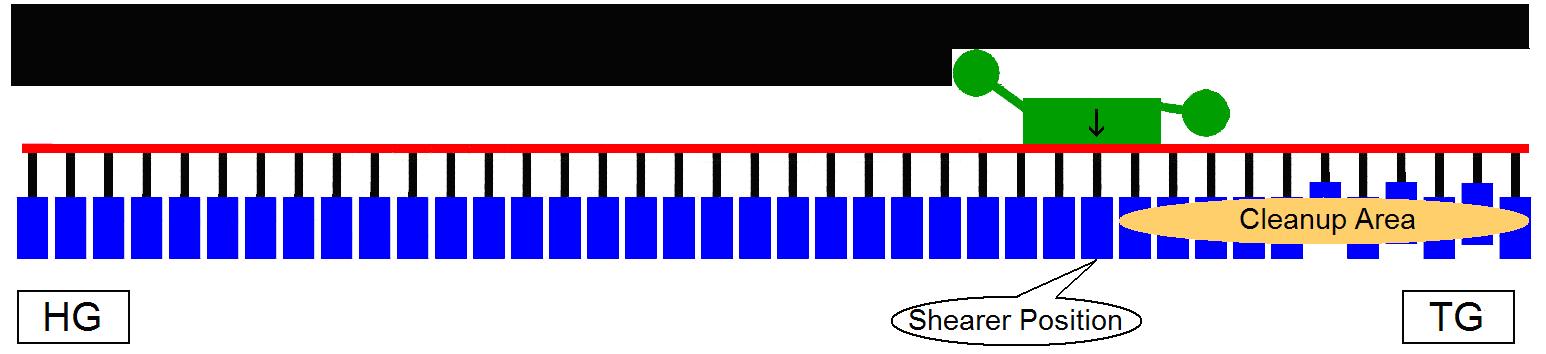

The shearer can now cut back into the tailgate as shown below.

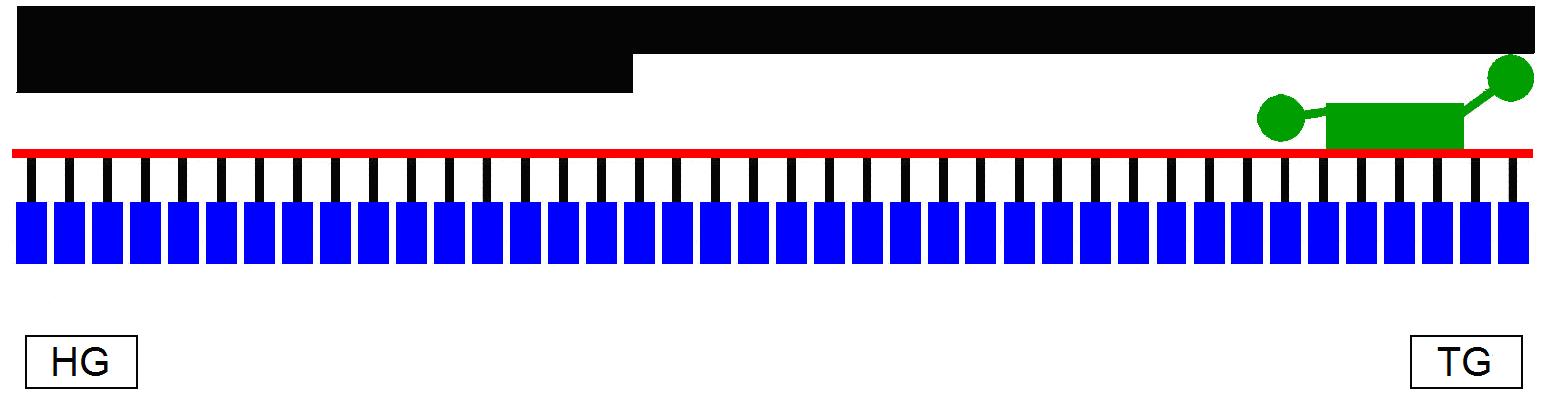

Bidirectional Cutting Cycle – Step 7 – Shearer in TG

The system is now ready for the shearer to cut back to the headgate. This the same position as Step 1 shown above except it is reversed: the shearer is in the TG instead of in the HG.

Bidirectional Cutting Cycle Beginning at Tailgate

Following are pictures representing the bidirectional cutting cycle starting at the tailgate.

Bidirectional Cutting Cycle – Step 1 – Leaving TG

Bidirectional Cutting Cycle – Step 2 – Cutting to Head
