Lubrication and inspection ............................................5

Maintenance _________________________________________________

central lubrication manifold

head shaft bearing seal lubrication manifold

tailpiece belt pulley lubrication manifold

conveyor motor lubrication manifold

breaker motor lubrication manifold Lubrication and inspection

Maintenance includes:

■ lubrication of the machine in accordance with the lubrication schedule.

■ inspection of the machine for faults and proper function.

■ inspection of wear parts.

Lubrication

IMPORTANT! The is equipped with a central lubrication system that allows several lubrication points to be lubricated from a central point. In addition, there are several smaller lubrication manifolds on the machine.

The central lubrication manifold (Fig. 43) is located on the right hand side of the receiving end of the feeder breaker. This allows the following to be easily lubricated from a central point; head shaft bearings, breaker shaft, tail shaft, and tail shaft bearings.

Mounted directly beneath the central lubrication manifold is the head shaft bearing seal lubrication manifold (Fig. 43). The Taconite seals on the head shaft bearings are lubricated from this manifold.

The tailpiece belt pulley manifold (Fig. 43) is located beside the belt pulley on the right hand side of the machine. Both tailpiece belt pulley bearings are lubricated from this manifold.

The conveyor motor lubrication manifold (Fig. 43) is located below the heat exchanger on the right hand side of the machine. The manifold is used to lubricate the bearings on the electric conveyor motor.

The breaker motor lubrication manifold (Fig. 43) is located to the left of the primary operator’s station on the right hand side of the machine and is used to lubricate the electric breaker motor’s bearings.

Maintenance

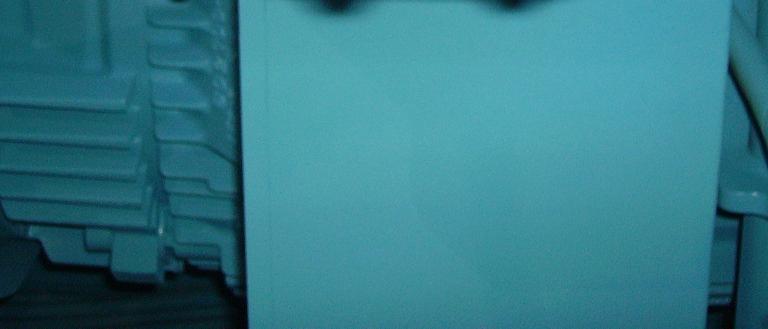

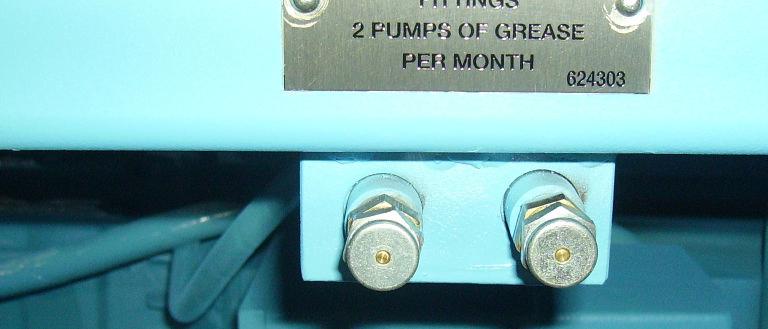

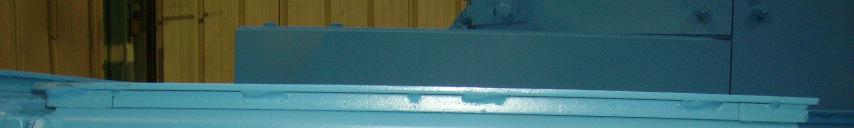

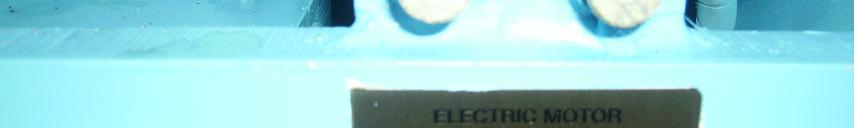

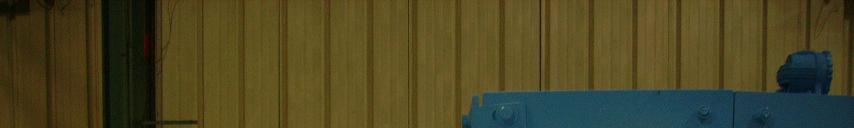

Fig. 43: Lubrication manifold locations

Head shaft bearing seal lubrication manifold Central lubrication manifold Breaker motor lubrication manifold

PROUDLY MADE INTHE U .S . A .

Tailpiece pulley bearing lubrication manifold Conveyor motor lubrication manifold
