Infrared pump motor controls

An infrared transmitter can be used to start and stop the pump motor on the machine. The feeder breaker is equipped with two (2) infrared receivers located on top of the machine (Fig. 21).

To stop the motor, press the stop button on the transmitter. To start the motor, press the start button on the transmitter.

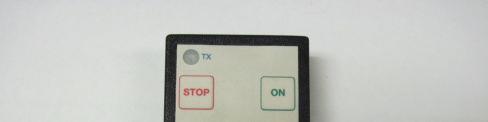

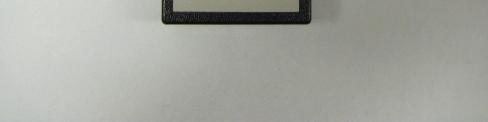

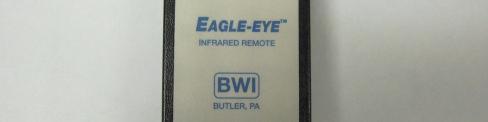

Fig. 21: Infrared transmitter and receiver

Infrared receiver (2)

Infrared transmitter (remote control)
