Changing Date Format

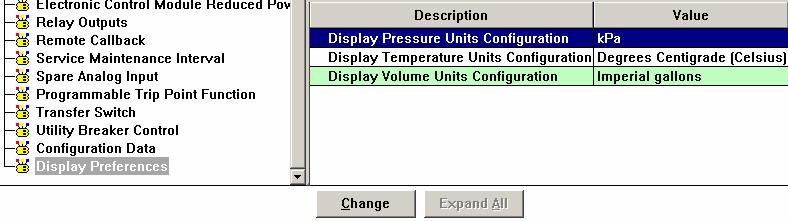

FIGURE 13: DISPLAY PREFERENCES

The display units can be changed the same way other setpoints are changed with the Service Tool. PRESSURE This allows pressure parameters (such as Engine Oil Pressure) and setpoints (such as Low Engine Oil Pressure Event Threshold) to be shown in either kPa, psi, or bar. Select the desired unit with the left or right arrows. TEMPERATURE This allows temperature parameters (such as Engine Coolant Temperature) and setpoints (such High Engine Coolant Temperature Event Threshold) to be shown in either Celsius (Centigrade) or degrees Fahrenheit. VOLUME This allows volume parameters (such as Fuel Volume) to be shown in either Liters, Imperial Gallons, or US Gallons.

4.3 CONFIGURING TIME/DATE (EMCP 3.2 AND 3.3)

The EMCP 3.2 and 3.3 have an internal clock that is used for time-stamping events. The timestamps for the first date and time an event has occurred and the last date and time the event has occurred are viewed by selecting an Event and pressing Enter, then scrolling down. See FIGURE 14 below.

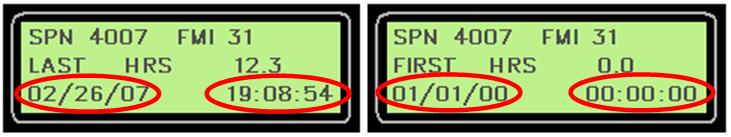

FIGURE 14: EVENT DETAILS SCREENS – LAST OCCURRENCE (LEFT) AND FIRST OCCURRENCE (RIGHT)

CHANGING DATE FORMAT

The data format can be set to either display in the form Month/Day/Year or the form Day/Month/Year. This procedure must be performed on the EMCP 3 GSC display; it cannot be done using the Caterpillar® Service Tool.

NOTE: This preference does not affect operation of the EMCP 3 or the data as viewed in the Caterpillar® Service Tool. It only affects how the date is displayed on the EMCP 3 GSC display.

To change the date format, do the following:
