Configuring Digital Inputs

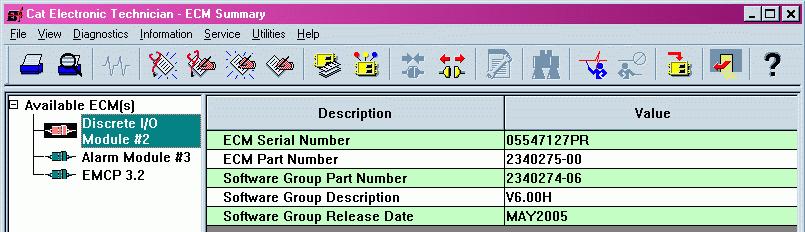

service tool will automatically disconnect and reconnect to the data link, and the DIO module name should reflect the new ECU instance. In the example shown in FIGURE 68, the module was previously named Discrete I/O Module #1, and after the ECU instance is changed to 2 and the service tool reconnects, the name reads Discrete I/O Module #2.

FIGURE 68: CATERPILLAR ® SERVICE TOOL DIO AFTER ECU INSTANCE CHANGE

CONFIGURING DIGITAL INPUTS

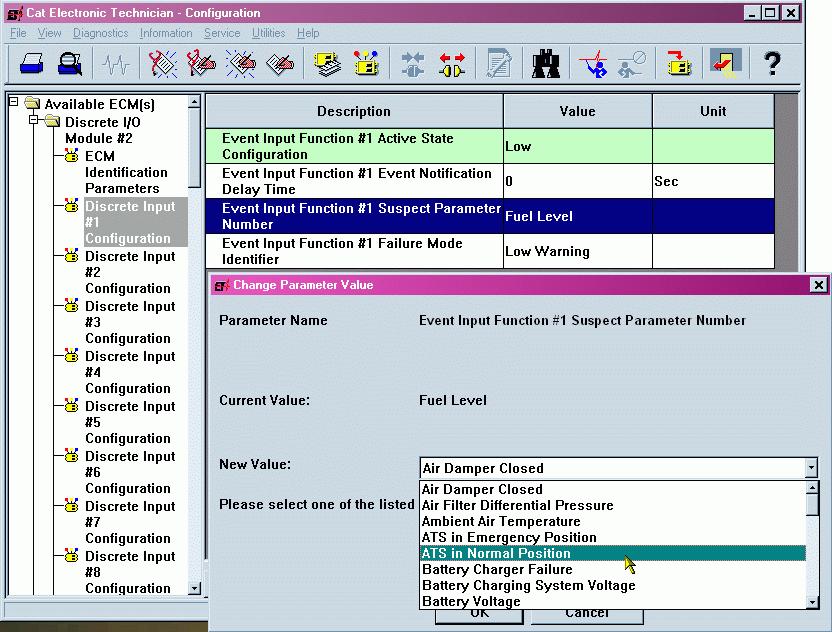

FIGURE 69 shows the Discrete Input #1 Configuration list using the service tool configuration tool. All twelve discrete inputs have identical parameters and options.

FIGURE 69: CATERPILLAR ® SERVICE TOOL DIO DIGITAL INPUT CONFIGURATION
