Operator’s Display

CLOSED CIRCUIT VIDEO MONITOR

The dragline is equipped with a closed circuit video monitoring system. Instructions for the closed circuit video monitor system can be found in section C527ML-EXT in the Vendor Manual.

OPERATOR’S DISPLAY

The Operator’s Display is a CTR panel used to provide the operator with an interface to the machine and its functional areas. From this informational display the operator can make inputs that affect machine operation, monitor systems and make system adjustments. Through this display terminal the operator will receive pertinent fault data to identify potential problems and prevent machine damage.

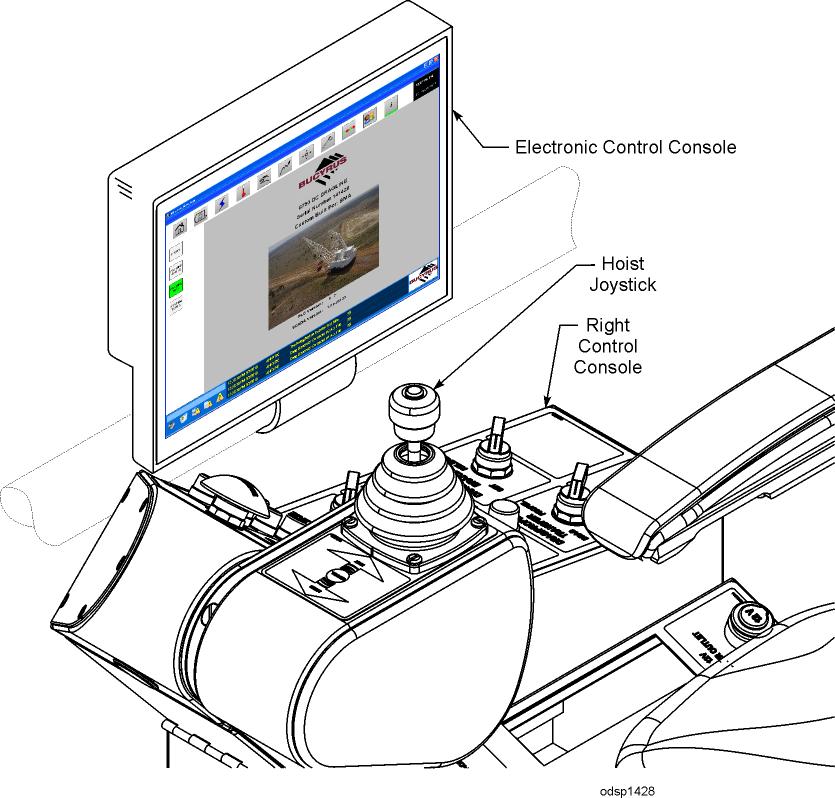

Operator’s Display

The display panel is mounted on a tilt-swivel bracket on the side arm of the seat. Individual operators can position the screen in any desired position.

DISPLAY AREA & INDICATORS

The display area of the monitor screen is the large area in the center of the screen. This area is “touch sensitive.” All information will be displayed on this area in either a text format or in the form of visual icons. The buttons and icons that appear on the screen will respond to touching the screen in the appropriate area of the icon.

These icons and buttons will react by activating the screen, switch activation or display information relevant to the icon.

All the machine controls can be found on the Operator’s Display Panel touch sensitive screen or the left or right Control Consoles of the operator’s seat.
