CAB DISPLAY SCREENS

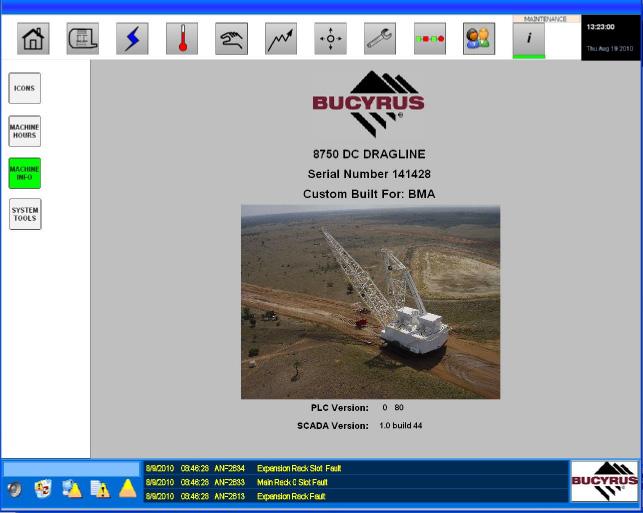

The Title Screen display appears when the machine is initially started.

Operator’s Cab Title Screen

The information provided in the central area of the screen is machine specific and lists the machine serial number, the customer name and a listing of important documents and drawings associated with the machine.

The Operator’s Screen is the primary operational information tool to be visible to the machine operator during daily use of this machine. The controls available on this screen will provide the operator with the information needed to view “at a glance” the status of items required for digging and to make changes in control settings.
