STARTING THE ENGINE

NOTE: If the machine has been out of use for some time, see “Starting up after storage” in the “Storage” Section. NOTE: See “Connecting booster batteries” in the “Electrical System” Section, if you have to start the engine using booster batteries.

1. Take up position correctly in the operator’s seat with the seat belt correctly fastened. See “Operator’s seat” in the “Controls/Instruments/Accessories” Section. 1 2

CD00E060 3. Make sure the engine throttle button (1) is in low idle position. In cold weather, leave it in half-way position. 4. Turn the starter switch key (2) to “ON” position. 5. If necessary, enter the anti-theft code. See “Anti-theft device” .

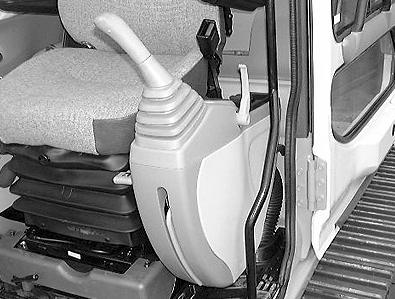

CD00E005 2. Make sure the function cancellation lever is raised and the safety bar in inward position.

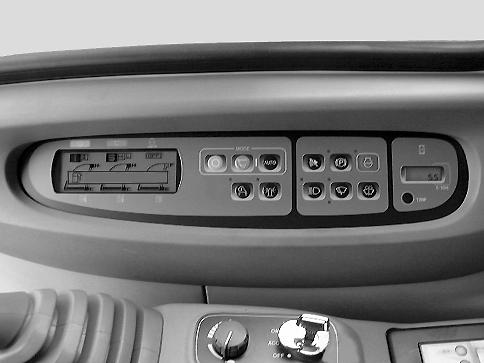

CD00E061 In cold weather, the message “Eng. pre heat” appears on the systems display panel. See item 10 under “Systems display and control panel” in the “Controls/ Instruments/Accessories” Section.
