PARKING THE MACHINE

1. Place the machine on flat, level ground, away from soft ground excavations and badly shored cavities. 2. Place the upperstructure frame in line with the undercarriage, retract the attachment, dig the bucket into the ground to anchor it.

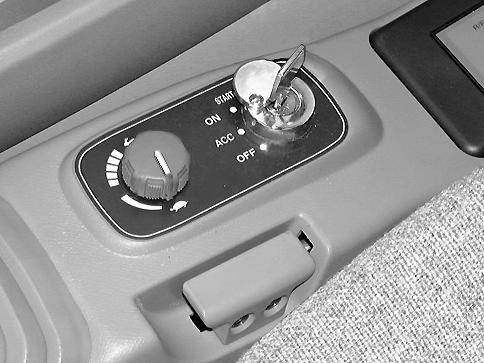

CD00E080 6. Stop the engine and remove the starter switch key.

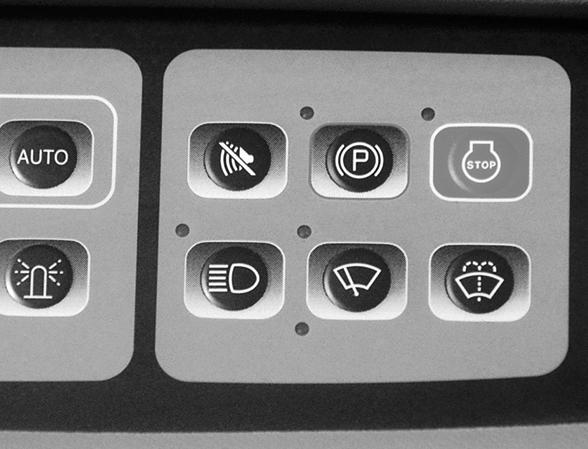

CD00E010 3. Use the upperstructure swing locking switch on the systems display and control panel and make sure the locking indicator lamp lights up on the display panel.

CD00E060 4. Turn the engine throttle button to low idle position and let the engine run for approximately five minutes. 5. If necessary, activate the anti-theft device. See “Anti-theft protection” .

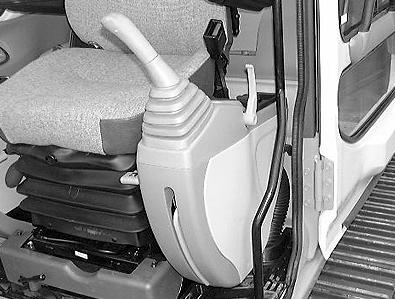

CD00E005 7. Raise the function cancellation lever (safety bar in inward position).

WARNING: Never jump down from the machine. When alighting from the operator’s compartment, or from the upperstructure, always face the machine and use the steps and access handles.
