HYDRAULIC SYSTEM
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE
ENGINE
Service specifications
Engine oil level check.................................................Every 10 hours or every day Oil change.....................................................................................Every 500 hours Oil filters replacement...................................................................Every 500 hours Oil type..........................................................................See “Fluids and lubricants” Oil capacity.................................................................................................33 litres
Level
1. Park the machine on flat, horizontal ground. Stop the engine and remove the starter switch key. B
A

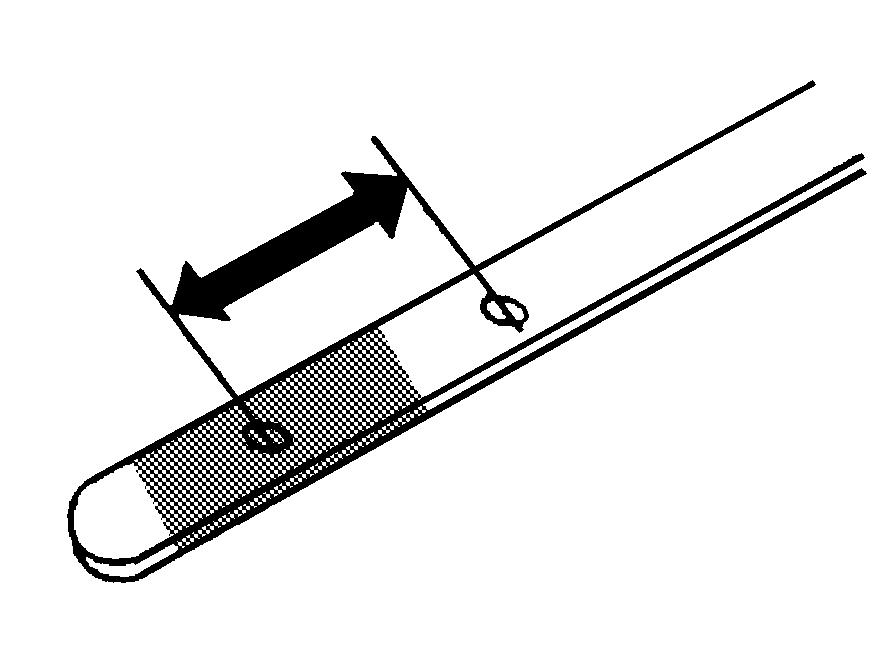

XXXXXXX 2. When the engine has been stopped for fifteen minutes, remove the dipstick, wipe it with a clean cloth and replace it in the guide tube as far as it will go. Then take it out again.
CS98M579 3. If the oil level is below the mark (A) (minimum), remove the oil filler cap, add oil up to the mark (B) (maximum) on the dipstick and then replace the oil filler cap. NOTE: The level should not be higher than the mark (B) (maximum) on the dipstick.
116
TRIM THIS EDGE LEFT PAGE
COOLING SYSTEM Service specifications
Coolant reservoir level check..........................................................Every 10 hours or every day Coolant solution change.................................................................Every two years or twice a year (autumn/spring) if antifreeze is used System capacity........................................................................................100 litres
WARNING: Boiling coolant solution can spray out if the radiator cap is removed while the system is still hot. To remove the cap, allow the system to cool down, turn the cap to the first notch and wait until there is no more pressure. Then remove the cap.
WARNING: Check and service the cooling system according to the instructions given in this manual.!
Coolant solution
Put only ethylene-glycol coolant solution in the cooling system. Use good quality ethylene-glycol that has a high boiling point, with no additives to prevent leakage. Do not use non-approved anti-rust additives. Anti-rust additives and ethylene-glycol can mix and work against each other, thereby reducing anti-corrosion protection, forming deposits in the cooling system and causing damage to the cooling system and radiator. Consult your CASE Dealer for suitable coolant solution.
FUEL SYSTEM Service specifications
Draining water and sediment from the fuel tank..............................Every 50 hours Draining water from the water separator.........................................Every 50 hours Cleaning of water separator filter..................................................Every 500 hours Fuel filter replacement...................................................................Every 500 hours Fuel hoses replacement....................................................................Every 2 years or every 4000 hours (whichever comes first) Fuel tank capacity.....................................................................................900 litres Type of fuel....................................................................See “Fluids and lubricants”
117
