OPTIONAL TOOL FLOW SELECTOR BLOCKS

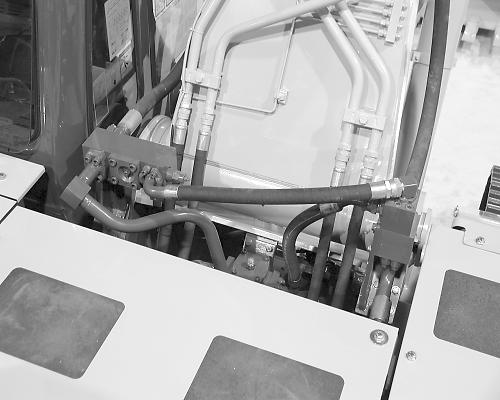

BD02D112 These blocks make it possible to select the correct hydraulic circuit for the optional tool.

OPTIONAL TOOL SUPPLY VALVES

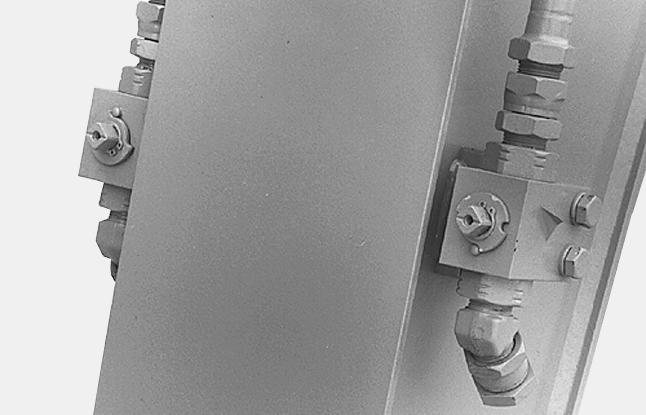

A24690 Located on the end of the arm, these two valves are used to ensure oil supply to optional tools. These valves have two positions. TRIM THIS EDGE

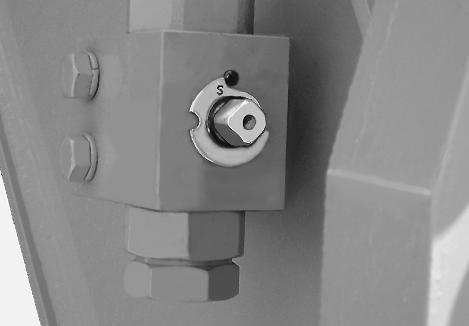

CD00E056 Position “S” (closed): In this position, there is no supply of oil to the tool.

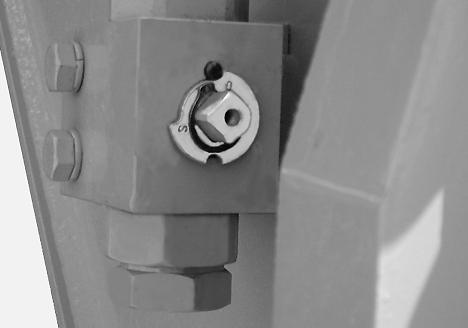

CD00E055 Position “O” (open): In this position, oil is supplied to the tool.
