OIL VISCOSITY/OIL RANGE

LUBRICATION

FLUIDS AND LUBRICANTS

Lubricants must have the correct properties for each application.

Respect the maintenance intervals by checking the hourmeter every day. Before starting maintenance, park the machine on flat, firm ground, away from any obstacles, with the dipper retracted and the bucket on the ground. Unless otherwise specified, all maintenance operations must be carried out with the engine stopped, and the key removed from the starter switch. It is preferable to wait for all circuits to cool down before starting work. Wear suitable clothing and remember to use the necessary safety equipment. Clean the grease fittings before lubrication. Clean around plugs and filler holes before adding fluid. No dust or dirt must enter the components or the circuits.

When carrying out service work on the machine, place a “Do not operate” tag on the right-hand control arm. Never climb down from the operator’s compartment leaving the engine running. Any modification to this machine without prior authorization could cause serious injury. Do not make any modifications without authorization. Consult your CASE Dealer.

WARNING: The conditions of use for individual fluids and lubricants must be respected.

WARNING: Be sure all the service operations in this section are carried out punctually at the intervals given, in order to ensure optimum performance levels and maximum safety when using the machine.

WARNING: There is a risk of serious injury if maintenance or repairs are not performed correctly. If you do not understand the maintenance procedures, consult your CASE Dealer.

WARNING: If the attachment is raised or if the machine moves without an operator, serious injury can result. Before performing any maintenance, the following steps must be carried out: 1. Park the machine on flat, level ground. 2. Lower the attachment until it is resting on the ground. 3. Stop the engine and remove the starter switch key. 4. Lock the tracks to prevent any machine movement.

117

TRIM THIS EDGE

RIGHT PAGE (Section First Page)

6-33740na TRIM THIS EDGE

TRIM THIS EDGE IMPORTANT: If you use your machine in particularly harsh conditions (dusty or corrosive atmosphere, etc.), the servicing intervals should be reduced accordingly.

IMPORTANT: Take particular care to replace all filters regularly. Clean filters mean longer engine running life.

IMPORTANT: Oil and fluid should not be thrown on the ground. They must be stored and removed by a company which is responsible for their recycling or their disposal.

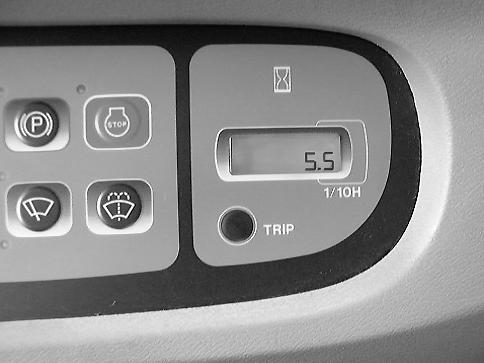

HOURMETER

CD00E073 The hourmeter enables service operations to be scheduled. It displays the total time that the engine has been operated, in hours and tenths of an hour. Servicing intervals are carefully calculated to guarantee safe and efficient machine operation. Be sure to carry out all the servicing operations properly as defined in this manual.

DAILY INSPECTION

Every day, before starting work, it is necessary to inspect the machine and service certain of its components.

GENERAL

● Check signs of leaking oil or water. ● Check that all screws and nuts are correctly tightened. ● Wipe off any dust (engine, operator’s compartment). ● Check for any signs of deterioration.

ENGINE

● Check the oil level and change the oil if necessary. ● Check the coolant level. ● Check the radiator for signs of clogging or deterioration. ● Check the radiator fan belt tension. ● Check the air filter is clean and not restricted. ● Check the components for signs of leaking oil or water. ● Check the condition of all lines.
