ELECTRICAL SYSTEM .......................................................................... 202

Replacing a bulb (continued) Upperstructure and cab headlight

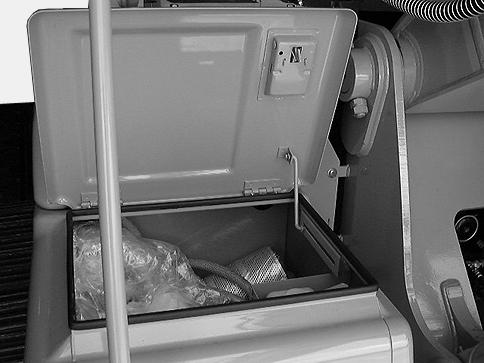

1. Open the front box.

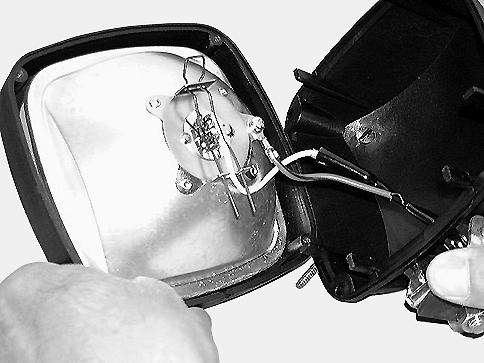

CD00E053 CD00E129 4. Remove the four screws and tilt the headlight.

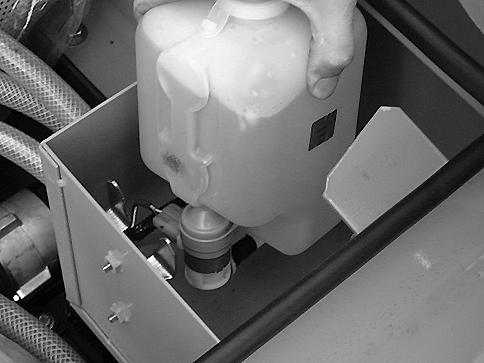

CD00E127 2. Take out the windshield washer reservoir to gain access to the headlamp.

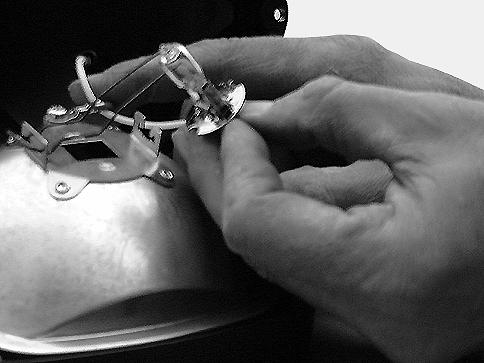

CD00E130 5. Pull the clip outwards, remove the bulb and install a bulb of the same wattage (70W). IMPORTANT: Never put your fingers on a tungsten iodide bulb. 6. Install the clip, put the headlamp back in position and install the screws and the plug. 7. Put the windshield washer reservoir back in place.

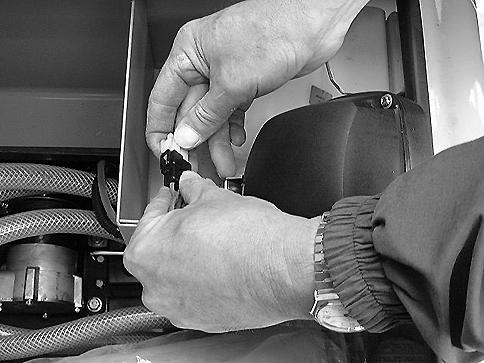

3. Disconnect the plug.

CD00E128
