QUICK TOOL INSTALLATION AND REMOVAL
QUICK TOOL INSTALLATION AND REMOVAL (optional)
IMPORTANT: This quick coupler is designed to be used with CASE buckets. This being said, other buckets may be used, provided the diameter of the pins and the width between the bucket lugs are modified to meet the dimensions needed to fit the quick coupler (pins, washers, bushings, etc...). See your CASE Dealer.
WARNING: It is strictly forbidden for anybody to remain in the machine operating area during tool installation and removal operations.
Installation

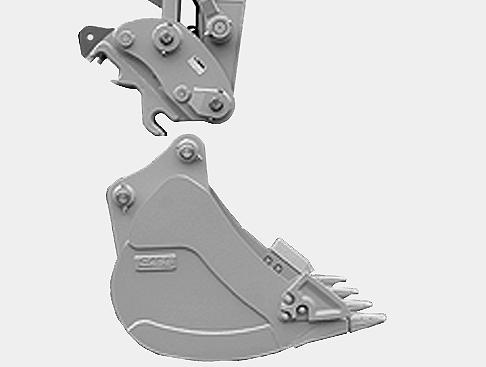

1. Make sure the tool to be installed is laying safely on flat, level ground and that it is fitted with the pins supplied with the quick coupler.
1

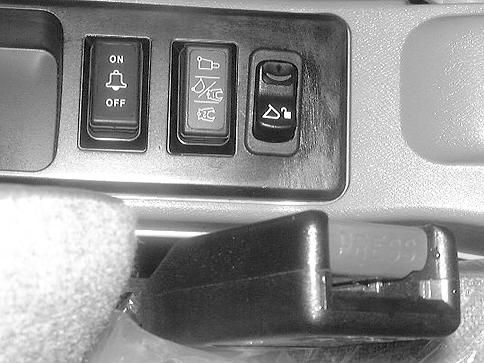

CD01K005 2. Place the switch (1) in unlocking position. The audible alarm device will sound. See “Quick coupler locking and unlocking control switch” in the “Controls/ Instruments/Accessories” Section.

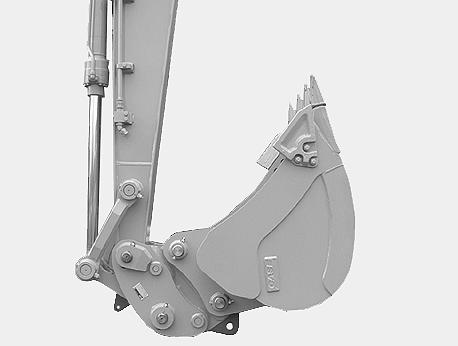

CD00F030 3. Operate the dipper and bucket controls so that the dipper is practically vertical, sloping slightly towards the cab to release the safety device. Extend the bucket cylinder rod completely and maintain the hydraulic pressure so that the latching hook retracts.
3
2

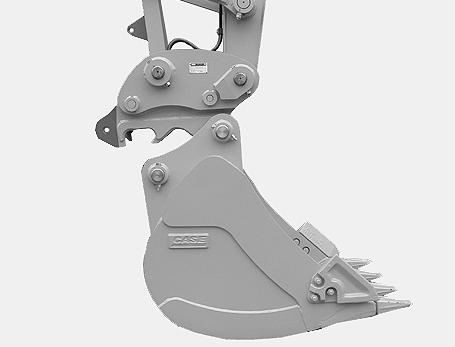

CD00F031 4. Operate the dipper control lever so as to bring the quick coupler hook (2) around the tool pin (3).
CD00F033 6. Raise the dipper and operate the bucket control to extend the bucket cylinder rod completely. 7. Place the switch (1) in the locked position. The audible alarm device will cease functionning. See “Quick coupler locking and unlocking control switch” in the “Controls/Instruments/Accessories” Section.
CD00F036 5. Operate the bucket control lever so that the pin (3) is completely engaged in the latching hook (2).
CP00G001 8. Maintain the pressure in the bucket cylinder to allow the latching hook to close. Raise the attachment so you can see the bucket pin.

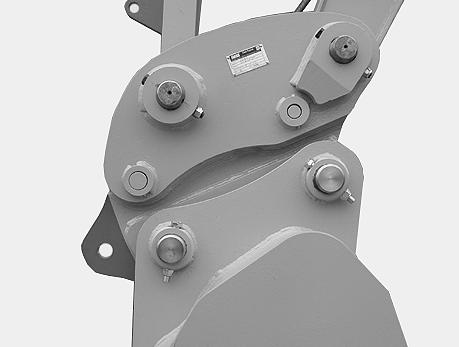

CD00H004 9. Make sure you can see that the bucket pin is correctly engaged in the (red) latching hook.
Removal

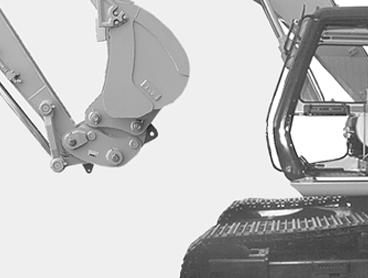

CD00F033 1. Operate the dipper and bucket controls so that the dipper is practically vertical, sloping slightly towards the cab to release the safety device. Extend the bucket cylinder rod completely and maintain the hydraulic pressure so that the latching hook retracts.
CD00F032 10.Operate the bucket control to retract the cylinder rod and allow the safety device to engage. IMPORTANT: If it is not possible to make a visual check sitting in the operator’s seat, get down from the machine and make sure that the tool is correctly connected with the safety device engaged. 1
CD01K005 2. Place the switch (1) in unlocking position. The audible alarm device will sound. See “Quick coupler locking and unlocking control switch” in the “Controls/Instruments/Accessories” Section.
CD00F034 3. Operate the bucket control to lay the bucket safely on flat, level ground.

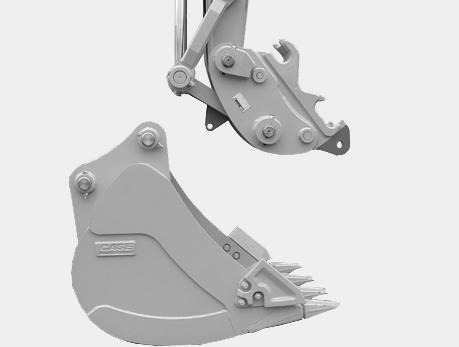

CD00F035 4. Operate the dipper control to unhook the tool.
