W eight

V alve for blade operation

Manufacturer Kawasaki Heavy Industries, Ltd. Operating pressure 3.92 MPa ( 569 psi ) Secondary pressure 0.64 –2.45 MPa ( 92.8320 – 355 psi ) primary short type Operating angle ° W eight 1.0 ( 2.205 )

Remote control valve for offset operation

Manufacturer Kawasaki Heavy Industries, Ltd. Operating pressure 3.92 MPa ( 569 psi ) Secondary pressure 0.64 –2.45 MPa ( 92.8320 – 355 psi ) primary pressure short type Operating angle ° W eight 1.7 ( 3.748 )

Operation remote control valve control diagram

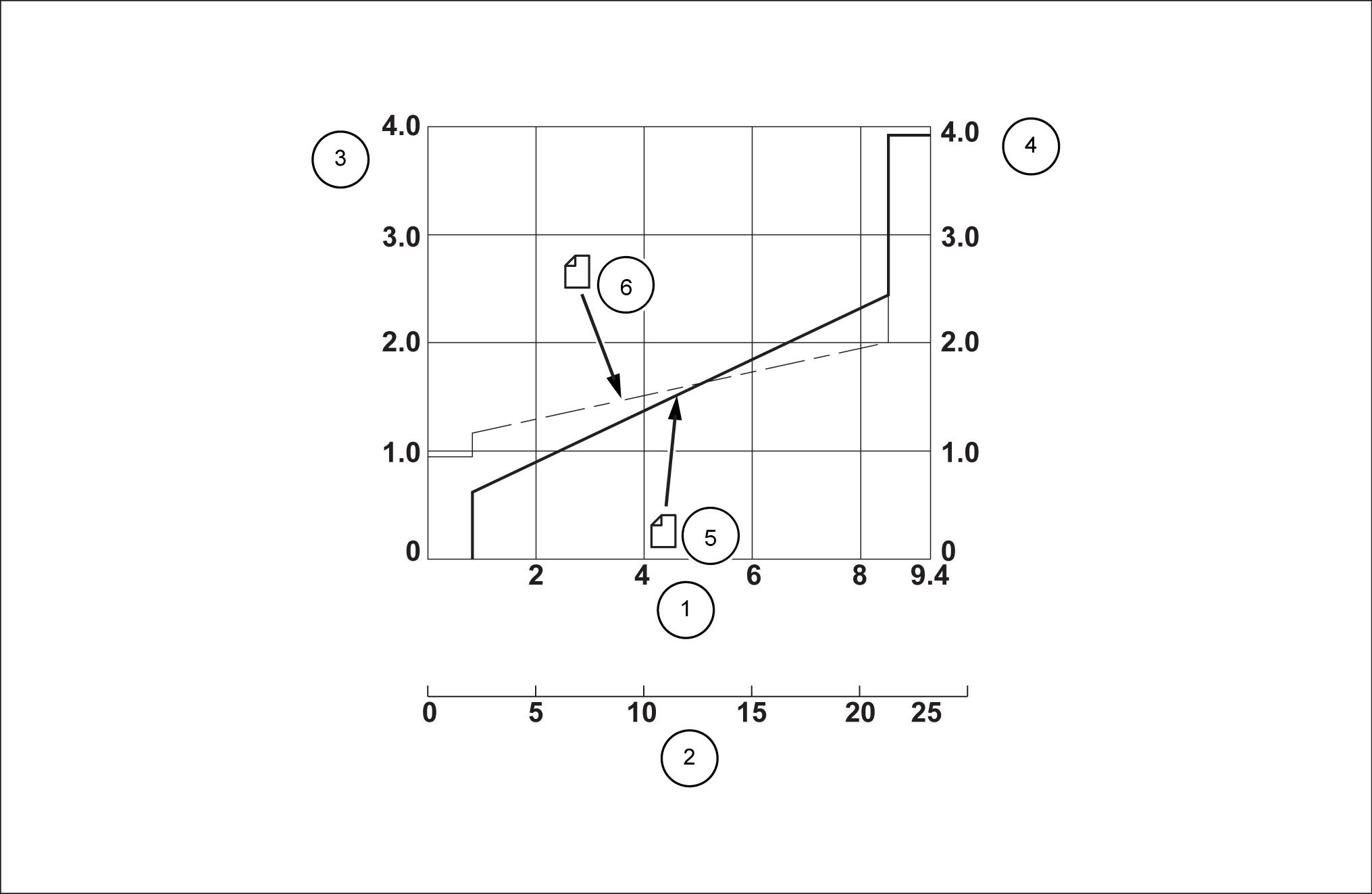

SMIL15CEX4380FB 1

Ports 3

1 Push rod stroke [mm (in)] 5 Secondary pressure 2 Operating angle [deg.] 6 Independent operating torque (Port 3 Secondary pressure [MPa] 7 Independent operating torque (Port 4 Operating torque [Nm]

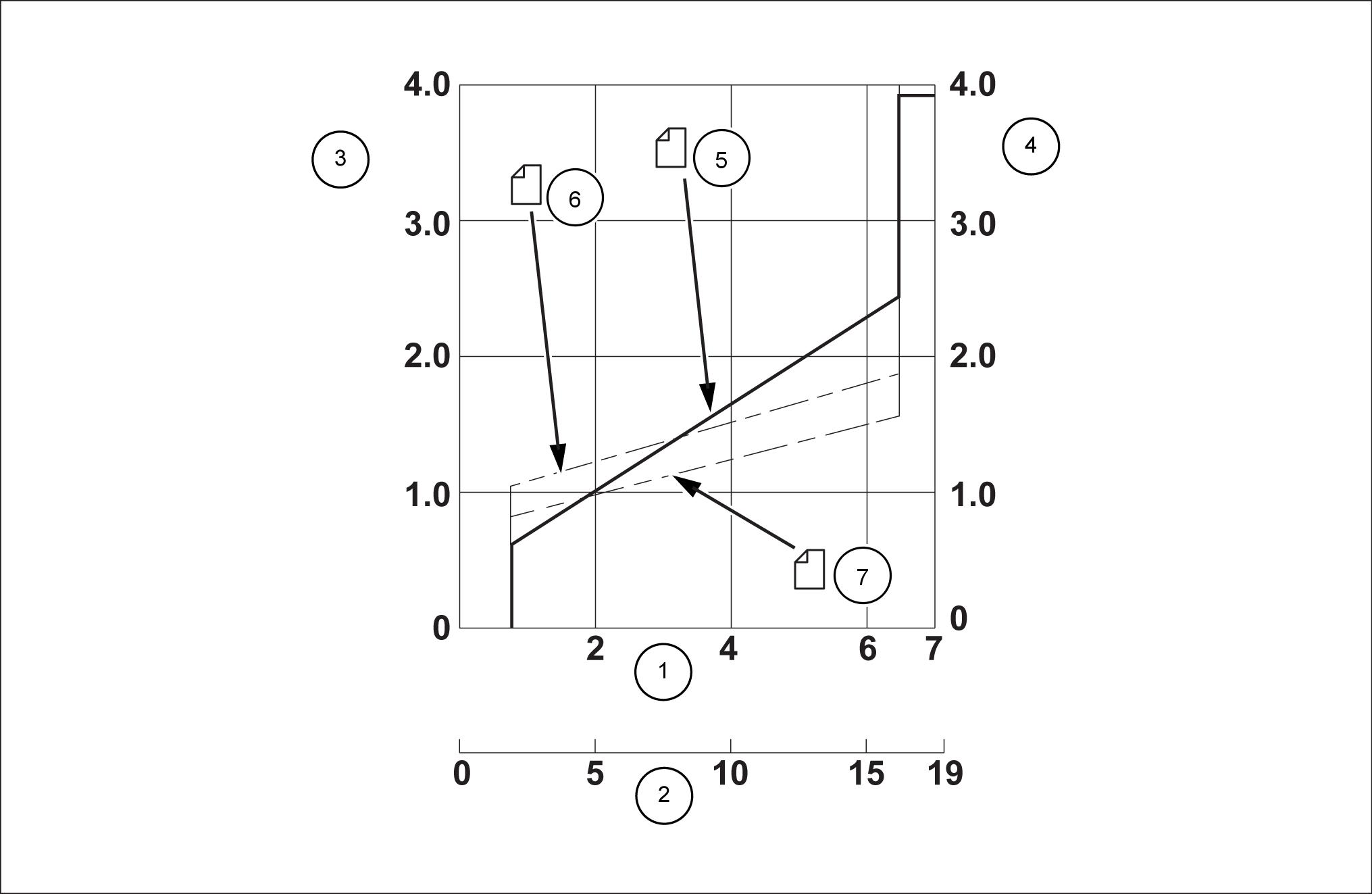

SMIL15CEX4381FB 2

Ports 4

1 Push rod stroke [mm (in)] 4 Operating torque [Nm] 2 Operating angle [deg.] 5 Secondary pressure 3 Secondary pressure [MPa] 6 Independent operating torque
