W eight

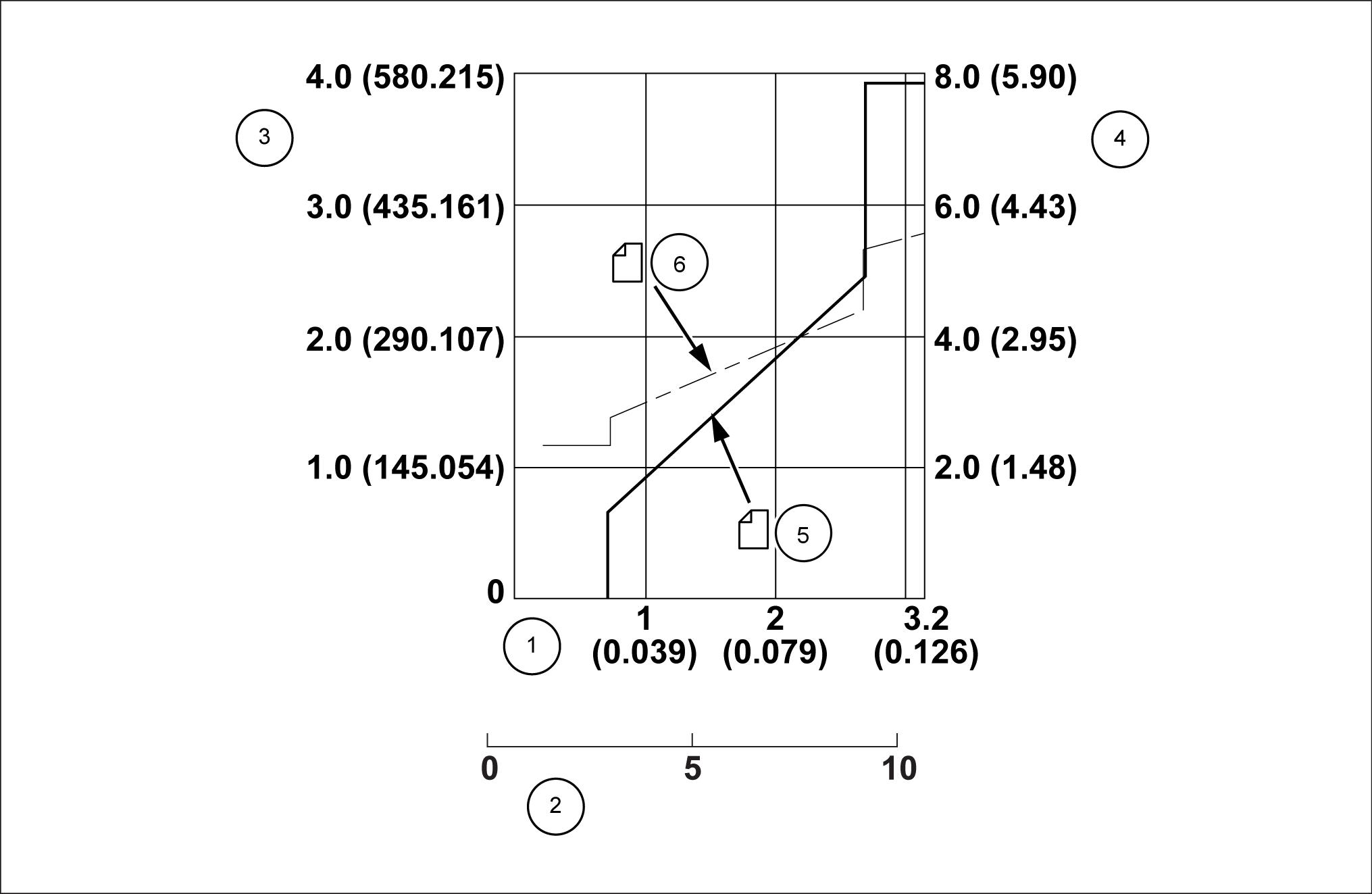

T ravel remote control valve control diagram

SMIL15CEX4382FB 3

1 Push rod stroke [mm (in)] 4 Operating torque [Nm] 2 Pedal operating angle [deg.] 5 Secondary pressure 3 Secondary pressure [MPa] 6 Independent operating torque

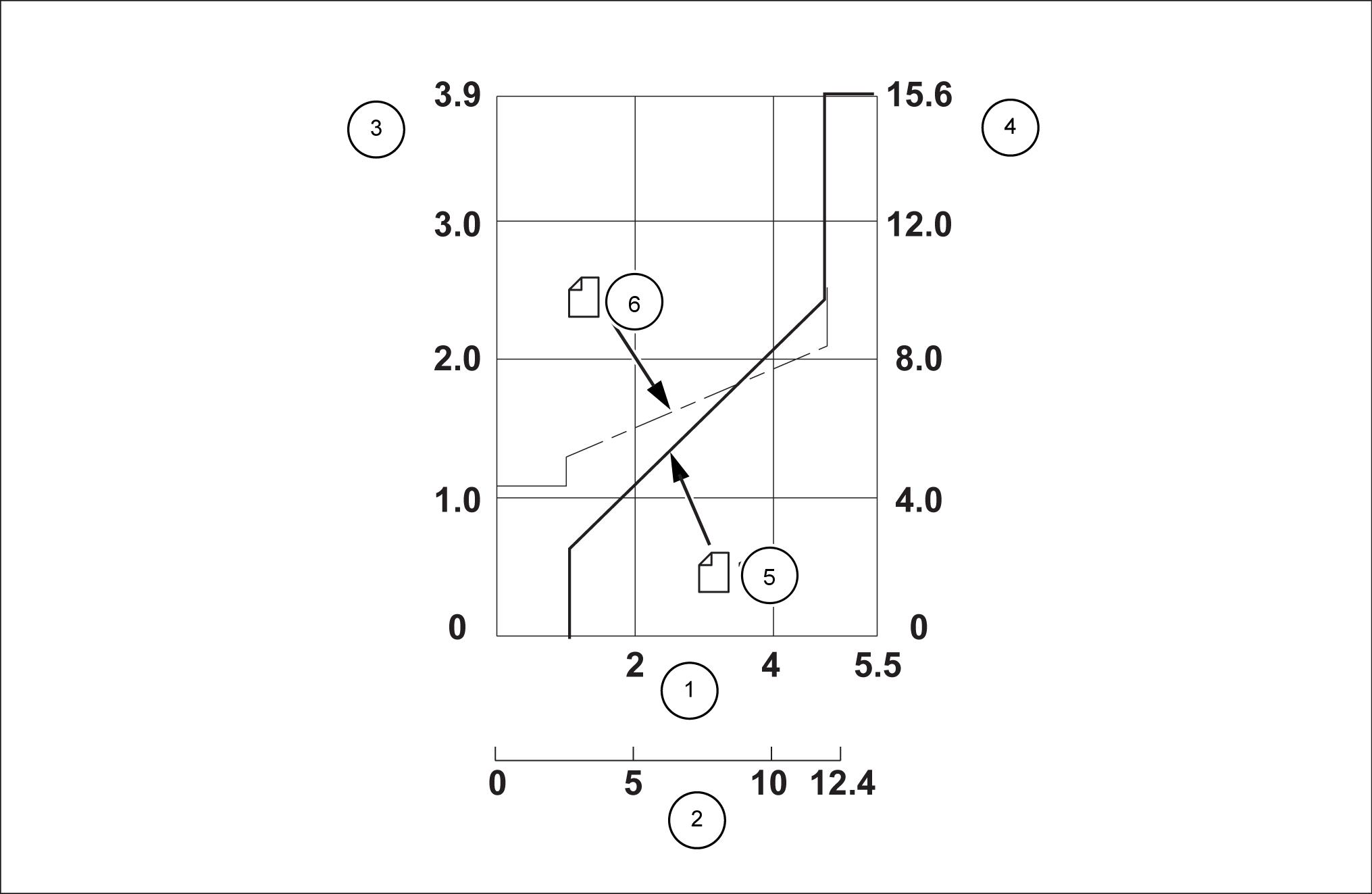

Blade remote control valve control diagram

SMIL15CEX4383FB 4

1 Push rod stroke [mm (in)] 4 Operating torque [Nm (lb ft)] 2 Pedal operating angle [deg.] 5 Secondary pressure 3 Secondary pressure [MPa (psi)] 6 Operating torque
