BATTERIES

Torque specifications per component

Component Screw (Ø) Wrench (mm) Torque (Nm)

Travel reduction gear (*) M16 24 267-312 Drive sprocket (*) M16 24 267-312 Idler wheel (*) M16 24 267-312 Upper roller (*) M16 24 267-312 Lower roller (*) M16 24 267-312 Track bad M16 24 392-430 Counterweight M27 41 844-980 Turntable bearing (undercarriage) M16 24 280-322 Turntable bearing (upperstructure) M16 24 280-322 Swing reduction gear (*) M16 24 280-322 Engine (*) M16 24 265-313 Engine mounts (*) M10 17 64-73 Radiator M12 19 64-73 Hydraulic pump (*) M10 17 63-72 Hydraulic reservoir (*) M16 24 206-247 Fuel tank (*) M16 24 206-247 Control valve (*) M16 24 267-312 Hydraulic swivel (*) M12 19 109-127 Cab M16 24 78-80 Batteries M10 17 20-29

NOTE: Use Loctite 262, or the equivalent, on screws marked (*). TRIM THIS EDGE

211

TRIM THIS EDGE RIGHT PAGE

Alt= to hide template informationAlt+ to display template information

Template Name: OM_1_colTemplate Date: 1994_04_29

Template Date: 1994_04_29Template Name: OM_1_col

Alt+ to display template informationAlt= to hide template information

TRIM THIS EDGE

FUSES

IMPORTANT: Before proceeding to replace a fuse, turn the starter switch key to “OFF”. IMPORTANT: Never replace a fuse with a fuse of a different amperage.

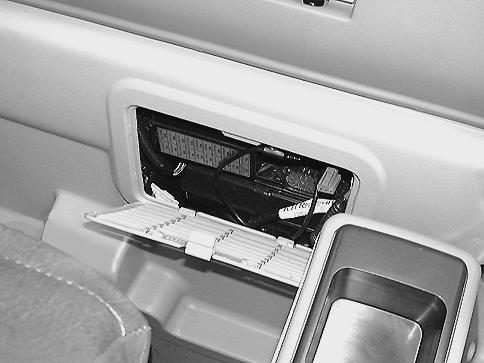

CD00E059 To gain access to the fuses, open the panel at the rear of the operator’s compartment and remove the cover.

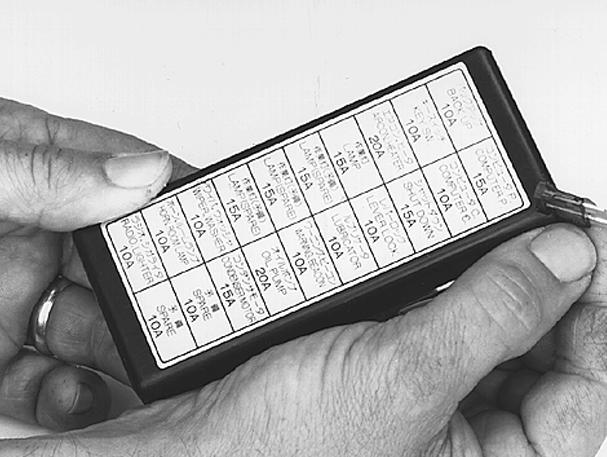

A23955 A notice on the cover gives the function and amperage of each fuse. NOTE: To remove or install a fuse, use the notch in the upper right-hand corner of the cover. NOTE: Two spare fuses (10 amp and 20 amp) are to be found on the inside of the cover.
