c) Piston and cylinder bush assembly

c) Piston and cylinder bush assembly

a. Put the cylinder block on top of front head. Insert the piston into cylinder hole slowly.

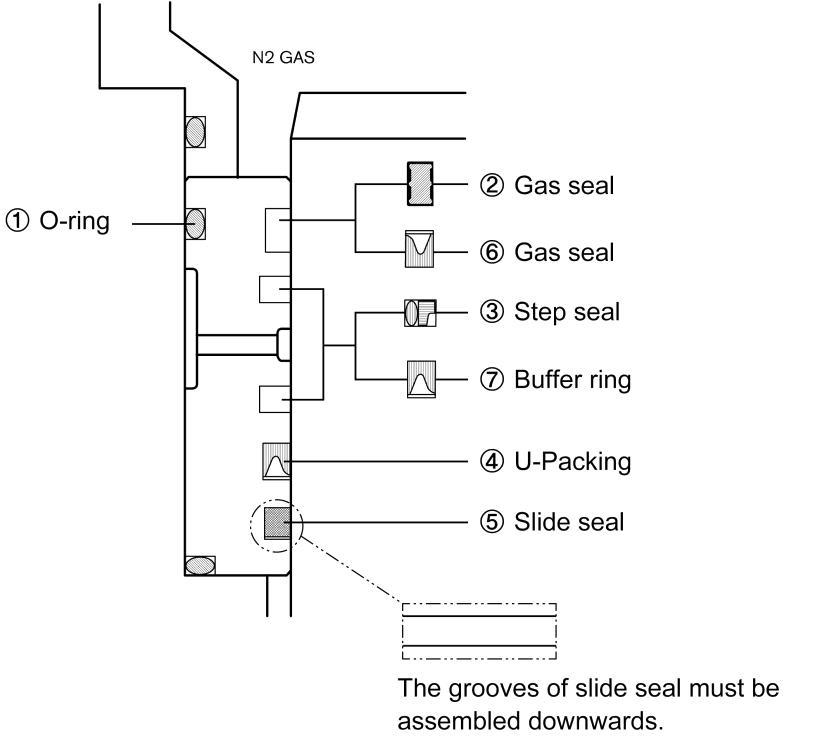

b. Fit seals to the grooves of cylinder bush

NOTE! Ensure that lock pin and O-ring are assembled at the right places before loading cylinder on the front head.

NOTE! Apply oil on seal grooves and seals (except gas seal) before fitting.

NOTE! Apply grease on gas seal before fitting.

Model Seal

CB62 ① ② ③
