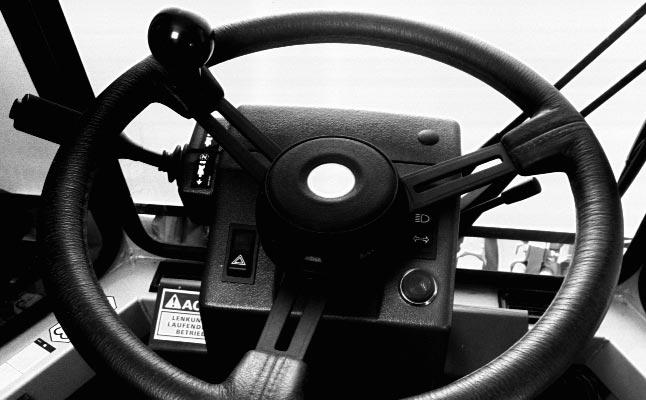

TRIM THIS EDGE 8. TURN SIGNAL LEVER - This lever has four (4) functions:

TURN SIGNAL - Push the lever forward to indicate a turn to the left. Push the lever backwards to indicate a turn to the right.

HIGH BEAM/LOW BEAM - When the light switch is in position 3 ROAD LIGHTS. Pull the lever upwards to change from low beam to high beam. The lever will return to its initial position. Pull the lever upwards again and the lights will change from high beam to low beam. When you start the machine and connect the road lights you will always have low beam.

FLASHER LIGHTS - When the light switch is in position 1 OFF and the lever is pulled upwards the high beam lights will come ON. When the lever is released it will return to its initial position and the lights will go OFF.

9. HIGH BEAM INDICATOR LIGHT - This blue lamp illuminates when the high beam lights are ON. 8

9 A19328
