LOADER CONTROL LEVERS
Priming the Turbocharger Lines with Oil Engine Speed
Do not operate the engine at idle speed for long periods. This can cause a low operating temperature. A low operating temperature can cause acids and deposits in the engine oil.
B4032291T

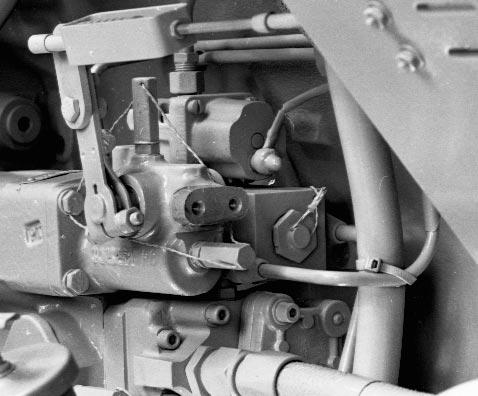

1. Disconnect the wire from the fuel injection pump solenoid.
2. Actuate the starter motor for about 15 to 20 seconds until there is oil in the lines.
3. Connect the wire to the fuel injection pump solenoid. TRIM THIS EDGE
55
TRIM THIS EDGE
RIGHT PAGE
Template Name: OM_1_colTemplate Date: 1994_04_29
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE
STOPPING THE ENGINE AND PARKING THE MACHINE
Secondary Steering (If Equipped)
WARNING: Jumping on or off the machine can cause an injury. Always face the machine, use the hand rails and steps, and get on or off the machine slowly. SA038
1. Before you leave the machine, make sure the machine is parked on level ground.
The machine must be on level ground before you do scheduled maintenance.
IMPORTANT: If you must temporarily park the machine on a hillside, put the front of the machine toward the bottom of the hill. Make sure the machine is behind an object that will not move.
2. Lower the loader to the ground.
3. Shift the transmission direction control to NEUTRAL and apply the parking brake. 4. Run the engine at idle speed for three to five minutes to decrease the temperature of the engine and turbocharger.
5. Turn the key switch to OFF and remove the key.
6. If your machine has a cab, lock the cab door.
7. Turn the master disconnect switch to
OFF.
The secondary steering system will automatically engage to allow you to steer the machine if the primary steering system stops working. If the secondary is activated, move the machine to a safe area and then stop the machine immediately and repair the problem.
The secondary steering system will function only when the key switch is in the ON position. Turn the key switch to the OFF position to stop the secondary steering motor.
NOTE: The secondary steering system is not intended for continuous use.
