STARTING THE ENGINE
-When travelling with a load, always use the travel control lever to obtain fine travel control.
-See "Transporting the machine" when driving the machine onto a trailer. -See "Handling the machine" when it is necessary to lift the machine. -See "Towing the machine" when it is necessary to tow the machine. -Whenever load handling operations are to be carried out, it is imperative to adhere strictly to the instructions given in this manual and local legislation. See "Load handling". -In certain situations, the positioning of the attachment can cause interference between the attachment tool and the operator’s compartment. Always observe a minimum safety distance between the tool and the operator’s compartment (in case of swinging or accidental movements). -Never use the attachment for sweeping the ground to level out rubble or push objects (transversal stress on the attachment). -Avoid running the engine in a confined space. If there is no alternative, proper ventilation must be provided at all times. -Dust, smoke or mist can reduce visibility and cause an accident. Reduce speed or come to a complete halt until visibility has improved. -In the event of an operating problem or failure, move the machine to a safe place, immediately lower the attachment to the ground, with the dipper cylinder rod and the bucket cylinder rod completely retracted or completely extended, stop the engine and remove the starter switch key. Locate the problem, report it if necessary and take the necessary steps to warn others not to attempt to operate the machine.
-Do not stop the engine without taking prevailing weather conditions into consideration. See "Stopping the engine". -See "Parking the machine" when you have to park the machine.
89
TRIM THIS EDGE
RIGHT PAGE TRIM THIS EDGE
Template Name: OM_1_colTemplate Date: 1994_04_29
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE
RUNNING-IN PERIOD
Your machine will last longer and give better and more economical performance if you pay particular attention to the engine during the first twenty hours of operation. During this period: Keep a close watch on the instrument panel. Check the oil and coolant solution levels frequently. During the running-in period, the following checks and servicing operations should be carried out in addition to those specified in the Service Schedule: AFTER THE FIRST 20 HOURS
Check track pad screw torque tightening. See “Tracks” in the “Maintenance/Adjustments” Section.
AFTER THE FIRST 100 HOURS
Check track pad screw torque tightening. See "Tracks" in the "Maintenance/Adjustments" Section.
AFTER THE FIRST 250 HOURS
Change the oil in the swing reduction gear. See "Swing reduction gear" in the "Lubrication/Filters/Fluids" Section.
AFTER THE FIRST 500 HOURS
Drain the oil in the travel reduction gears. See "Travel reduction gear" in the "Lubrication/Filters/Fluids" Section.
90
TRIM THIS EDGE
LEFT PAGE
STARTING THE ENGINE
NOTE: In cold weather, see "Starting the engine in cold weather". NOTE: If the machine has been out of use for some time, see "Starting up after storage" in the "Storage" Section. NOTE: See "Connecting booster batteries" in the "Electrical System" Section if you have to start the engine using booster batteries.
STEP 3
STEP 1
PH08134 Make sure that the travel control lever is in the neutral position. Make sure that the travel control lever is in the neutral position.
STEP 4

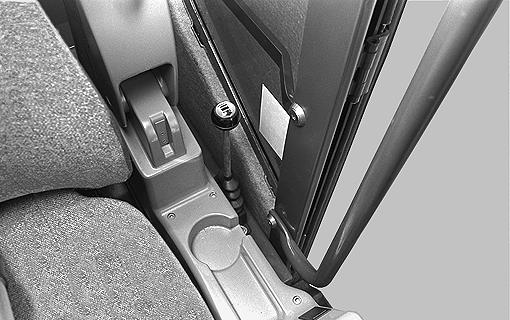

PH07613 Connect the electrical circuit using the battery master switch key.
STEP 2

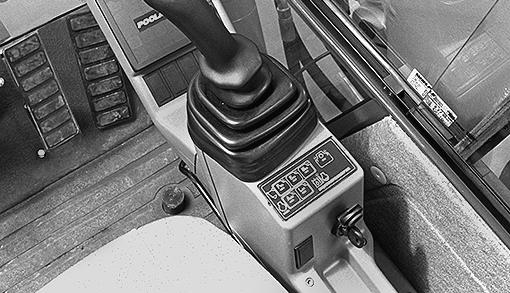

PH07521 Turn the starter switch key to the "ON" position. The audible warning device will sound for a few moments and will then stop.

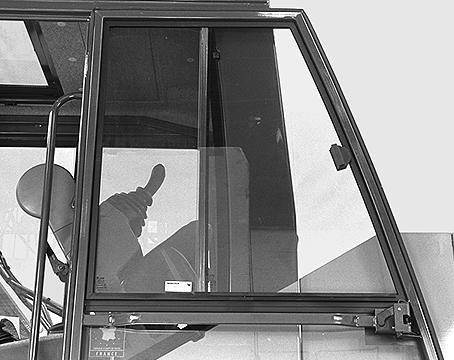

PH07426 Leave the left-hand control arm in the raised position. Leave the left-hand control arm in the raised position.
