ELECTRONIC CONTROL BOX
Located on the right-hand side of the seat, the electronic control box supervises and monitors a certain number of machine functions.
IMPORTANT: Never perform any operation on the electronic control box other than removing it when welding on the machine. See "Electronic control box" in the "Electrical System" Section.
PH08225
ELECTRICAL BOXES Functioning indicator lamp (LED)
CD98E031 Located behind the seat, the electrical boxes provide access to the fuses and relays. See “Fuses and relays, left and right compartments” in the “Electrical System” Section.

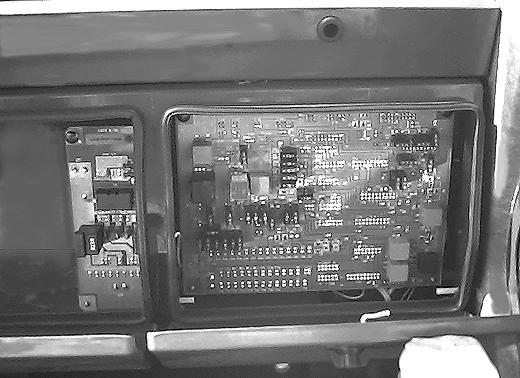

PH00301 This green lamp is on the printed circuit board. The lamp indicates the machine is functioning correctly when it stays on permanently. If the lamp flashes, it means the machine is experiencing one or more problems. Consult your CASE Dealer. TRIM THIS EDGE
