STEP 10

Install the safety-type retaining ring, fitting it progressively in its groove with a lever and seating it well in the bottom of the groove. IMPORTANT: It is essential for the retaining ring to be firmly seated in its groove all around the wheel.

STEP 11

Press the shoulder (2) into place hard up against the retaining ring, after making sure that if is in the correct position.

STEP 12

Before inflating the tyres, make sure the tyre fitting lines (7) are centred in relation to the rim (4) and the shoulder (2).

STEP 13

9

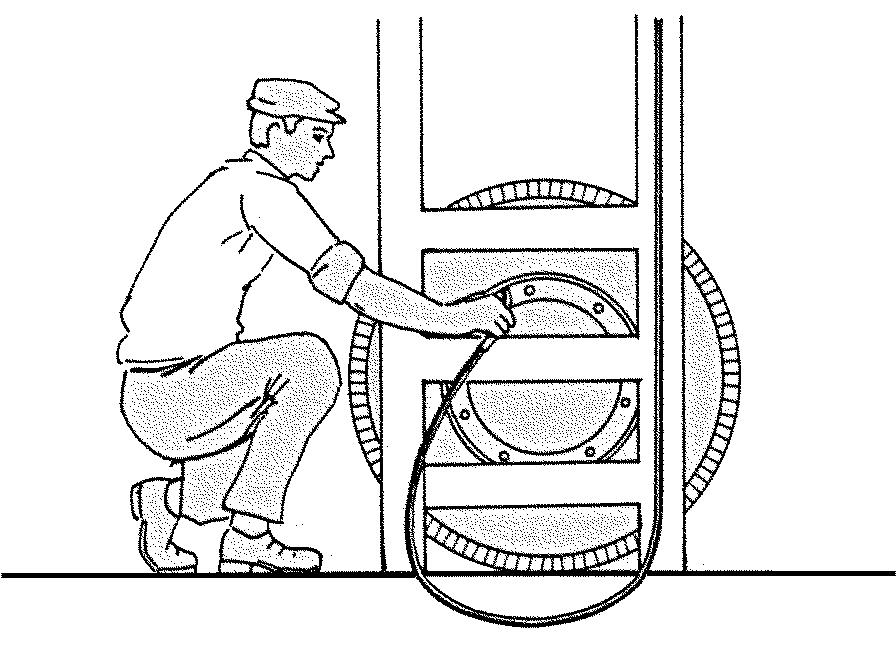

CS99C617 Install the wheel in an inflating cage (9) and inflate the tyre to a pressure of 2 bar.

STEP 14

10

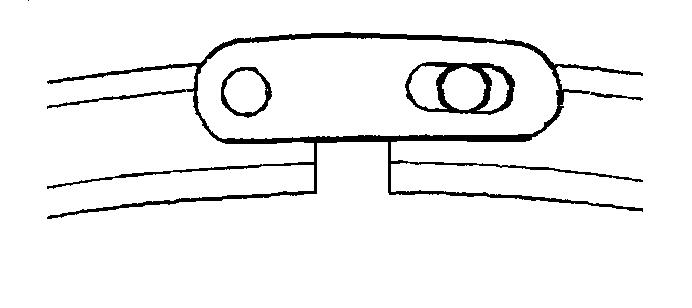

CS99F507 Install the plate (10) over the 2 lugs, taking care to mount it correctly (position of holes, curving the right way). IMPORTANT: The plate must go on easily, leaving just a little play.

STEP 15

Now check that all parts are in place and correctly installed. -Condition 1 : The plate goes on easily, leaving just a little play. -Condition 2 : The retaining ring is correctly seated in its groove, all around the wheel. -Condition 3 : The fitting lines (7) are centred and concentric with the rim and shoulder.
