PM type, special for Germany
STEP 4 STEP 6
1

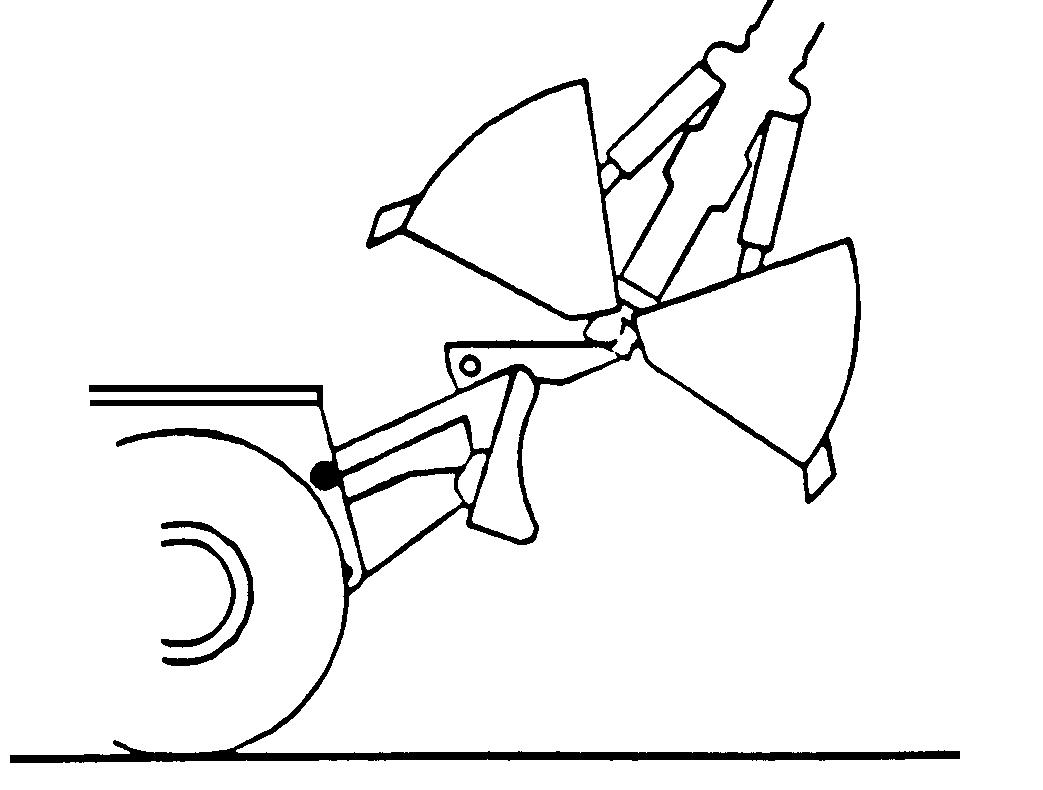

PDH1085
With adjustable boom
Make the clamshell pivot around the support by operating the boom and dipper cylinders simultaneously. The attachment will be in the road transport maximum overall dimension position when the marks on the boom cylinder coincide, the dipper position index markings coincide and the clamshell beam is in contact with the stabilizer beam.
With articulated boom
Place the boom cylinders in the extended position and make the clamshell pivot around the bracket by operating the boom articulation cylinder and the dipper cylinder simultaneously. The attachment will be in the road transport maximum overall dimension position when the boom and boom articulation cylinders are completely extended and when the clamshell beam is in contact with the stabilizer beam.
STEP 5
Lock the boom and dipper positions by means of the boom and dipper locking valves. See "Boom locking valve" and "Dipper locking valve" in the "Controls/ Instruments/Accessories" Section.

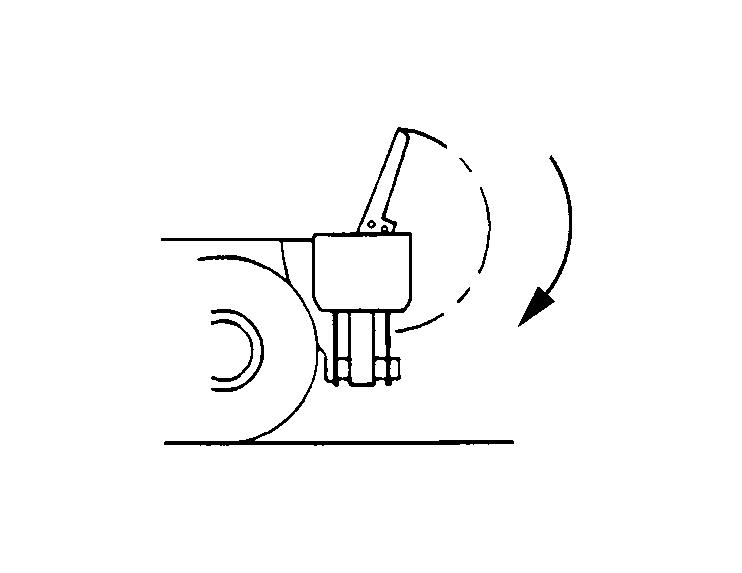

PDH1086 For the working position remove the shafts (1) and tilt the support forwards. Lock the support by means of one of the shafts.
P2AL Version
STEP 1

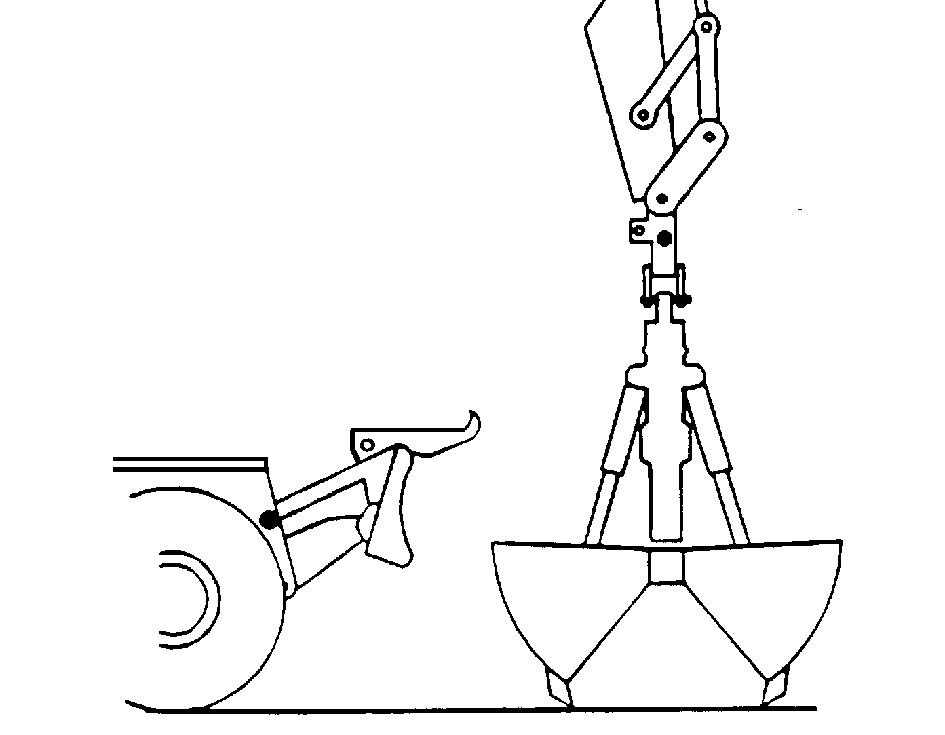

PDH1087 Turn the clamshell so that the clamshell teeth are parallel with the blade face. Install the support on the blade after pulling the retention pins out of the blade rods. Reposition the pins and split pins in their intial position.
169
TRIM THIS EDGE RIGHT PAGE TRIM THIS EDGE
Template Name: OM_1_colTemplate Date: 1994_04_29
Template Date: 1994_04_29Template Name: OM_1_col
STEP 2 STEP 4
TRIM THIS EDGE

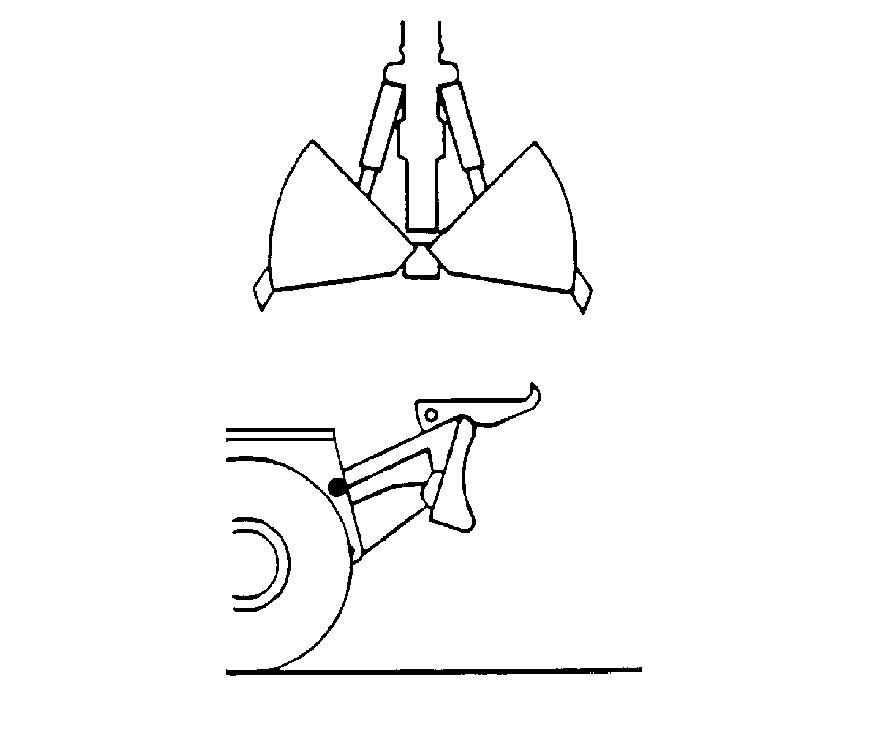

PDH1088 Raise the clamshell and open it so that it is above the support.
STEP 3

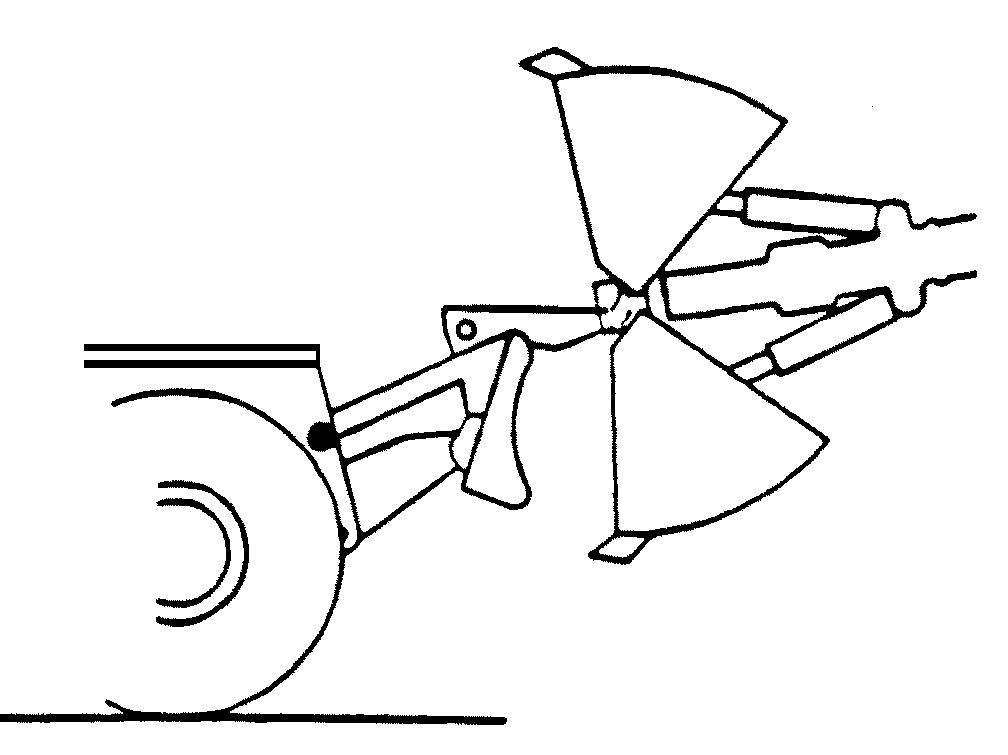

PDH1089 Using the boom and dipper, bring the shell beam located towards the operator’s compartment into the housing provided for that purpose on the support.

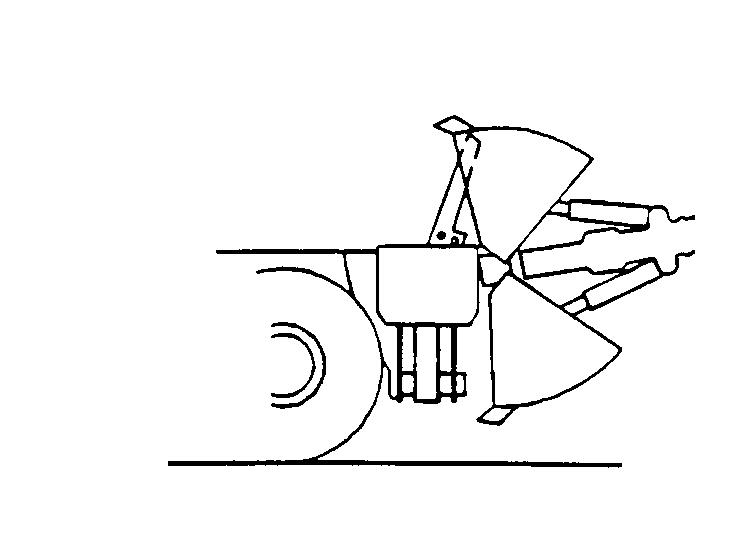

PDH1090
With adjustable boom
Make the clamshell pivot around the support by operating the boom and dipper cylinders simultaneously. The attachment will be in the road transport maximum overall dimensions position when the boom cylinder marks coincide and the when the clamshell beam is in position in the housing on the support.
With articulated boom
Extend the boom cylinders and make the clamshell pivot around the support by operating the articulated boom cylinders and the dipper cylinder simultaneously. The attachment will be in the road transport maximum overall dimension position when the boom cylinders and articulated boom cylinders are completely extended and the clamshell beam is in position in the housing on the support.
STEP 5
Lock the boom and dipper positions by means of the boom and dipper locking valves. See "Boom locking valve" and "Dipper locking valve" in the "Controls/ Instruments/Accessories" Section.
170
