MAXIMUM LOAD HANDLING CAPACITY LIMITS

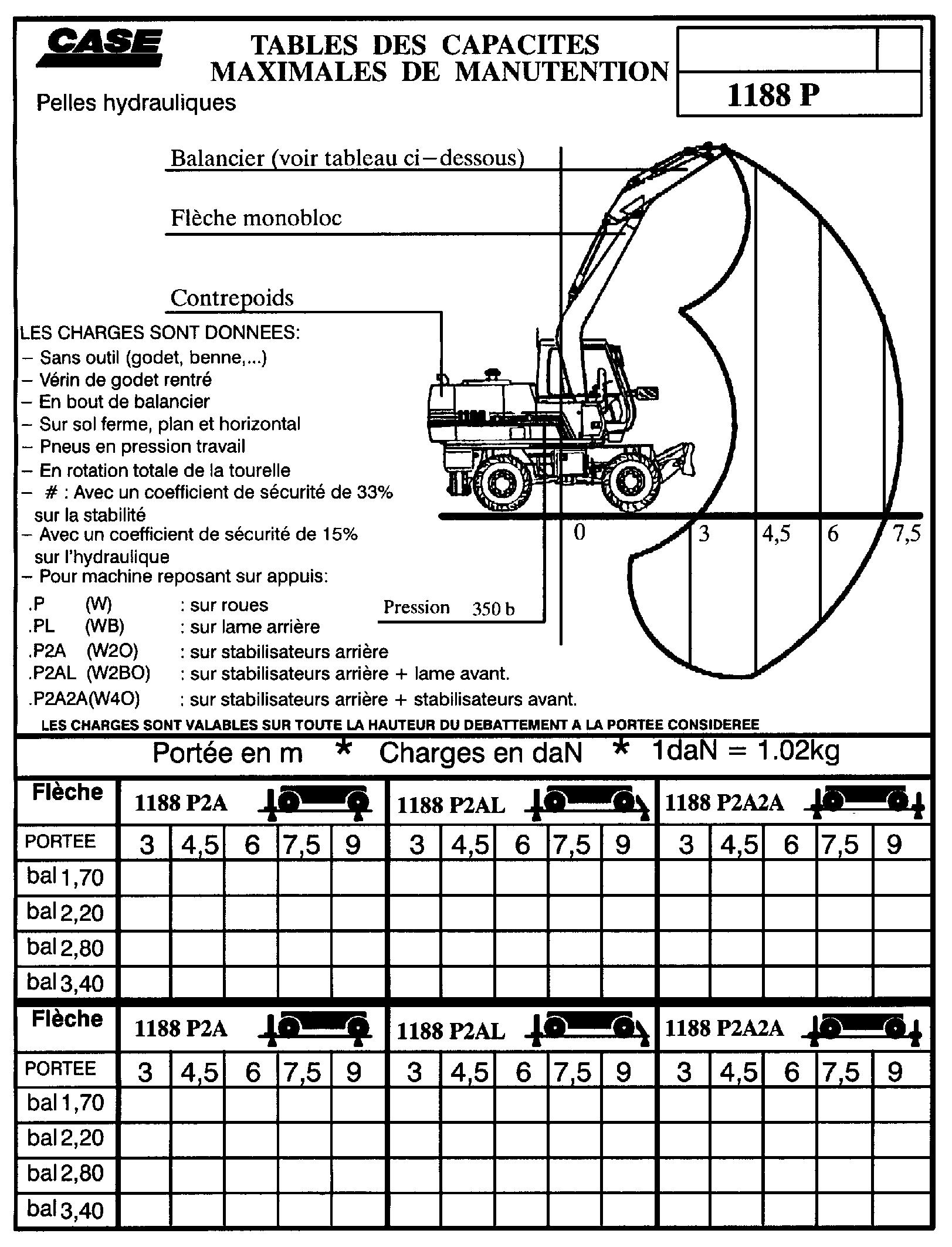

CS98D146 The maximum load handling capacity chart shows the different authorized loads which can be lifted at different reach points, depending on the type of attachment installed on the machine. The machine must be on flat, firm, level ground with the front axle locked. The stabilizers and the dozer blade (if equipped) must be resting on the ground. Loads are given in kg, for a machine without tool, with the bucket cylinder rod completely retracted, for full upperstructure swing, with a safety margin factor: - of 33% based on stability - of 15% based on hydraulic capacity with the end of the dipper as the load fixing point.

If the load fixing point is the eye located on the bucket connecting rod, the weight of the quick coupler (if equipped) (value shown on the identification plate) and the weight of the bucket (if installed on the machine or on the quick coupler) must be deducted. See “Buckets” in the “Specifications” Section.

WARNING: Never use the eye on the bucket connecting rod if the bucket has been removed.

The reach is given from the machine’s swing axis and the height is taken from the load fixing point. NOTE: The loads given are valid for the full working range height at the reach point indicated.
