CAB REMOVAL AND INSTALLATION
Unloading
1. Remove the blocks and fastening chains. 2. Switch on the electrical system using the battery master switch key. 3. (Machine with attachment) Raise the attachment to bring it a few centimeters above the trailer bed.
4. Release the upperstructure locking lever.
5. Release the brakes using the parking brake/work brake control switch. 6. Make sure that the front axle locking/ unlocking switches are in the unlocked position (indicator lamp lights up on instrument panel).
7. Press down the travel pedal and use the travel control lever to adjust the travel speed. 8. (Machine with attachment) Move forward slowly (job site speed) raising the attachment so as to keep it a few centimeters off the ground. 8. (Machine without attachment) Move the machine slowly forward (job site speed). 9. Turn the forward and rear view mirrors back to the correct position.
WARNING: The front axle must be unlocked when unloading the machine. TRIM THIS EDGE
133
TRIM THIS EDGE RIGHT PAGE
Template Name: OM_1_colTemplate Date: 1994_04_29
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE
HANDLING THE MACHINE
1 2 3 4

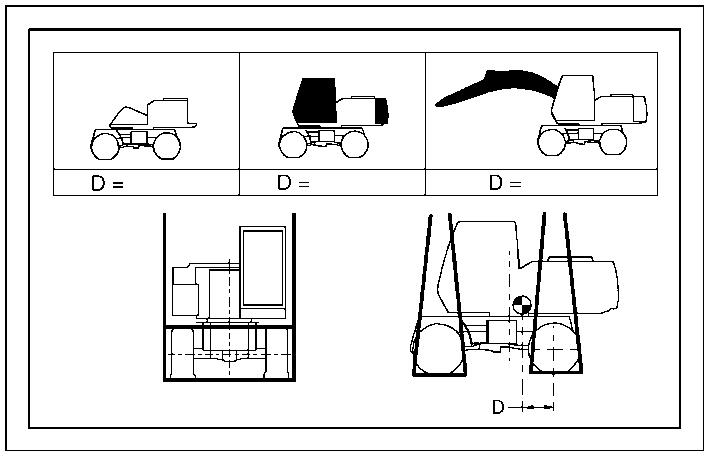

PDH1147 This decal indicates the position of the centre of gravity in relation to the centreline of the rear wheels (P2A and PM2A versions). The distance (D) of the centre of gravity varies according to the three possible handling configurations. (1)Machine without boom, cab or counterweight. (2)Machine without boom but with cab and counterweight. (3)Machine with 4.80 m monoblock boom, with cab and with counterweight. (4)PM type, special for Germany: machine with articulated boom, with cab and with counterweight.
P2A Version (4 wheel configuration 18-22.5 XF) Distance (D) Machine weight (1).....................................................844 mm..........................................11 053 kg (2).....................................................319 mm..........................................15 148 kg (3).....................................................716 mm..........................................17 061 kg PM2A Version (8 wheel configuration 11.00-20) Distance (D) Machine weight (1).....................................................824 mm..........................................11 354 kg (2).....................................................381 mm..........................................14 749 kg (4).....................................................758 mm..........................................17 569 kg NOTE: For the other machine versions, consult your CASE Dealer to obtain the distance (D). For the machine weight, see “Weights” in the “Specifications” Section.
WARNING: The sling points shown on the decal below must be used for lifting the machine.
WARNING: It is forbidden to lift the machine with the dipper fitted.!
134
TRIM THIS EDGE LEFT PAGE
Counterweight sling points Cab sling points

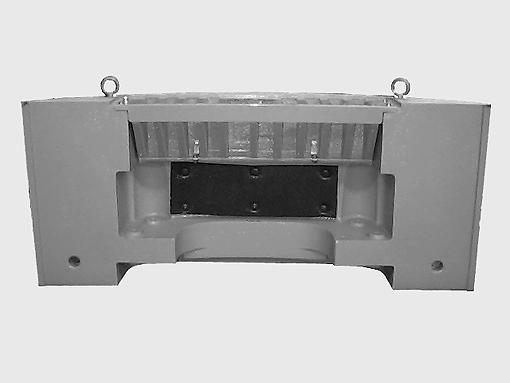

CD98E044 You must use the sling points for handling the counterweight. To remove the counterweight, consult your CASE Dealer. Weight of counterweight............3800 kg (PM Type, special for Germany)............3100 kg
PH07824 You must use the sling points for handling the cab. To remove the cab, see “Cab removal and installation” . Cab weight.................................295 kg
Dipper
To remove the dipper, consult your CASE Dealer. For the dipper weight, see “Weights” in the “Specifications” Section.
Boom
To remove the boom, consult your CASE Dealer. For the boom weight, see “Weights” in the “Specifications” Section. TRIM THIS EDGE
