OPERATING THE MACHINE IN COLD WEATHER

IMPORTANT: Do not operate the starter motor for more than 30 seconds at a time. Do not operate the starter motor when the engine is running.

STEP 8

1

STEP 9

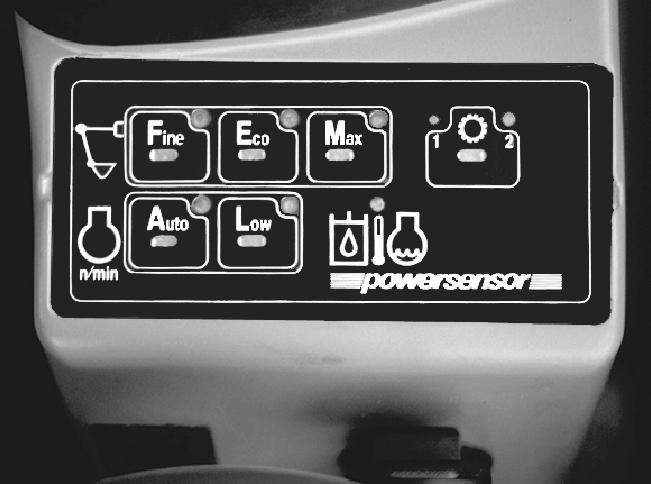

PH07328 When the engine is running, the “ECO” lamp goes out and the warm-up indicator lamp (1) flickers. NOTE: During the automatic warm-up period, it is impossible to select the “FINE” , “ECO” and “MAX” work modes. Wait until the warm-up indicator lamp has gone out before selecting one of these work modes.

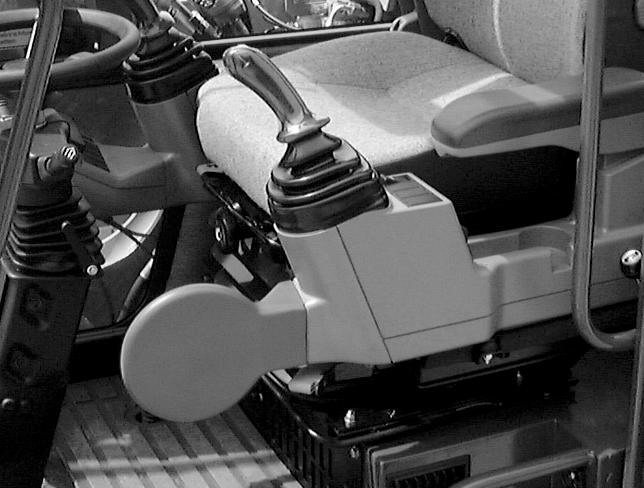

CD99M023 Place the left-hand control arm in the lowered position and check that it is locked in place.

CD99N019

IMPORTANT: Once the engine is running, check the gauges and lamps on the instrument panel regularly. TRIM THIS EDGE
