Replacing the LCD Module

IMPORTANT: Ensure that the LCD cables are not pinched by the hinges while replacing the LCD Module. 1. Using both hands, place the LCD Module into the Lower Cover.

Step

Size

LCD Module M2*5 3

Quantity Screw Type

3. Replace the two screws on the rear of the Lower Cover to secure the LCD Module to the computer.

Step

Size

LCD Module M2*3 2

Quantity Screw Type

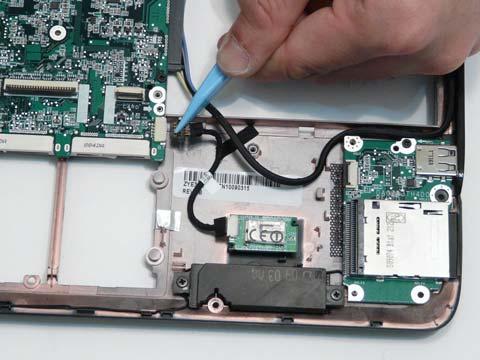

5. Connect the LVDS cable to the Mainboard and press the adhesive strip in place.
