Replacing the Card Reader Board

Next Article
BIOS Recovery by Crisis Disk

BIOS Recovery by Crisis Disk

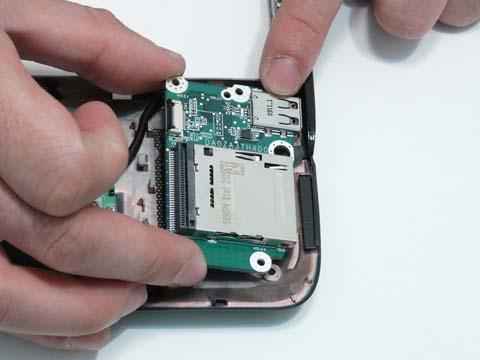

1. Place the board into the Lower Cover, right side first so the I/O ports align with the openings in the lower cover.

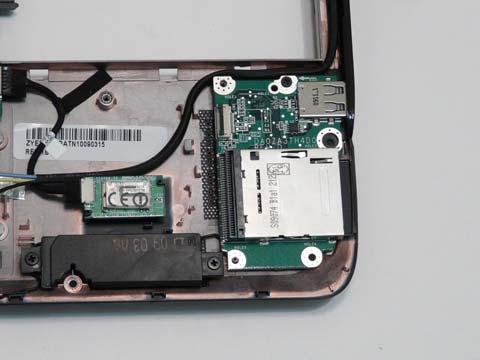

2. Replace the single screw to secure the Card Reader Board to the Lower Cover.

Step

Card Reader Board

Size

M2*5 1

Quantity Screw Type
