Replacing the Speaker Module

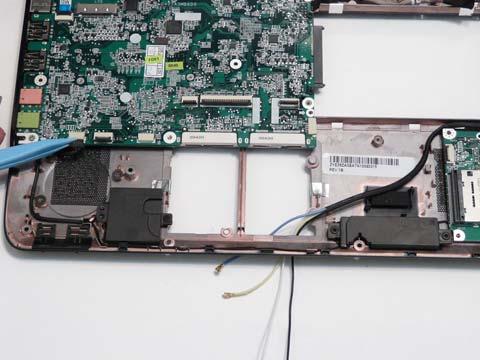

1. Place the right side speaker into the Lower Cover as shown.

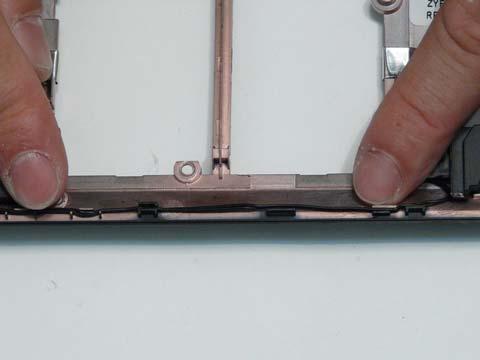

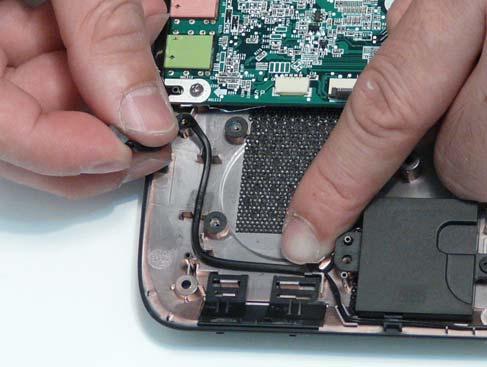

2. Insert the cable into the cable channel at the front of the Lower Cover. Ensure the cable is secured by all cable clips.

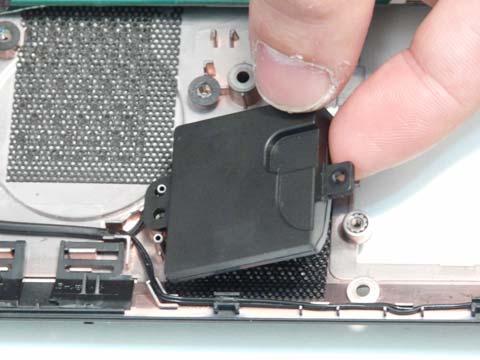

3. Place the left side speaker into the Lower Cover as shown.

5. Replace the three screws to secure the Speakers to the Lower Cover.

Step

Size

Speaker Module M2*3 3

Quantity Screw Type

6. Connect the Speaker cable to the Mainboard.
