Replacing the LCD Cable and Brackets

IMPORTANT: If the LCD Panel is replaced, remove the protective strips from the defective panel and reuse them on the replacement panel as shown. NOTE: The vertical strip shown in the first image may appear on the right of the panel for some models.

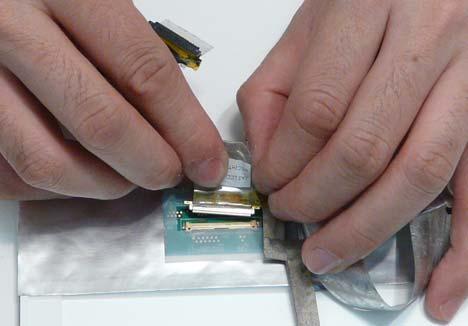

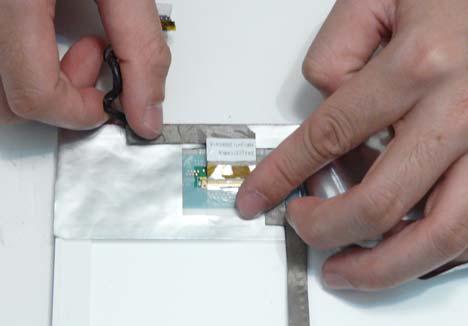

1. Insert the LCD Cable into the panel connector as shown. 2. Secure the connector by replacing the adhesive strip as shown. Press down to secure the adhesive.

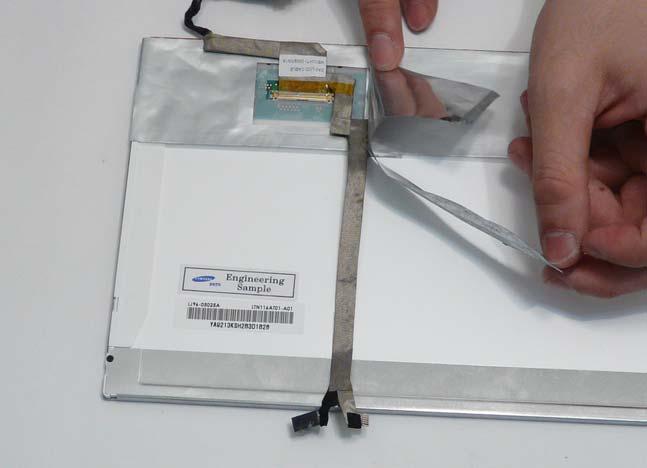

IMPORTANT: Ensure that the LCD Cable runs as shown to avoid trapping when the Bezel is replaced.

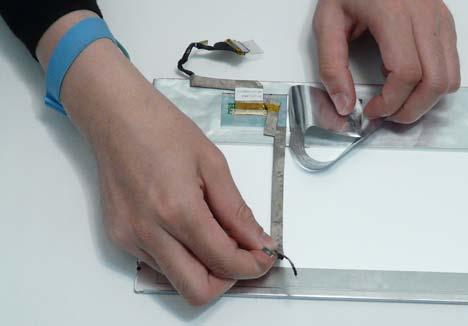

4. Replace the cable protection strip and press down to secure it in place.
