Removing the LCD Brackets and FPC Cable

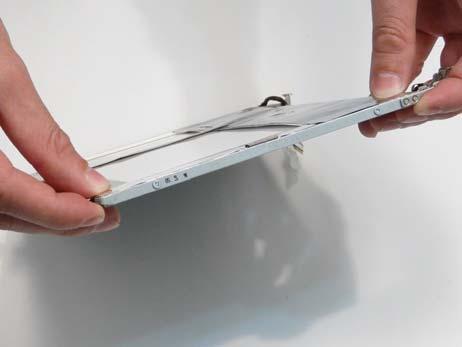

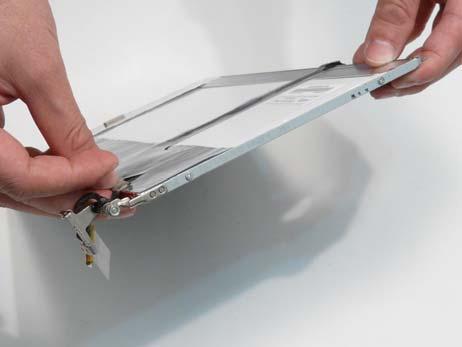

1. See “Removing the LCD Panel” on page 90. 2. Remove the four securing screws (two each side) from the LCD Brackets.

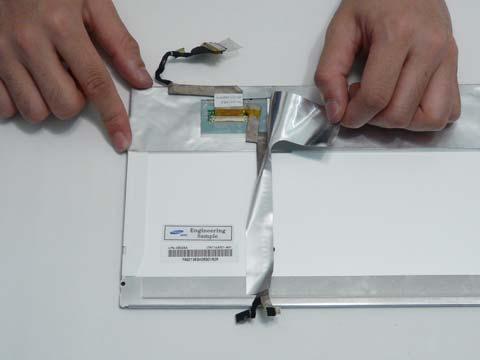

3. Turn the LCD panel over on a clean surface. Lift the cable protection strip away from the LCD Panel to detach the adhesive securing it in place.

Step

Size

LCD Brackets M2*3 4

Quantity Screw Type

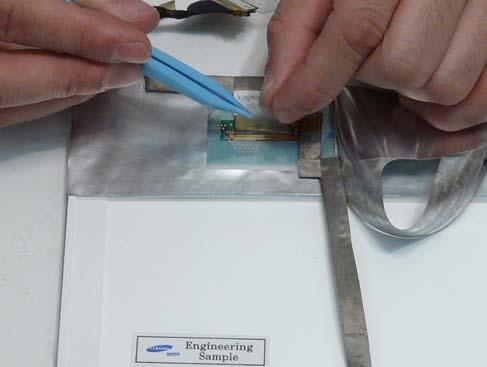

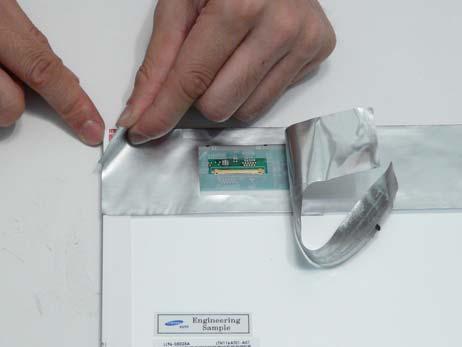

5. Carefully lift the adhesive tape securing the cable connector to the LCD Panel.

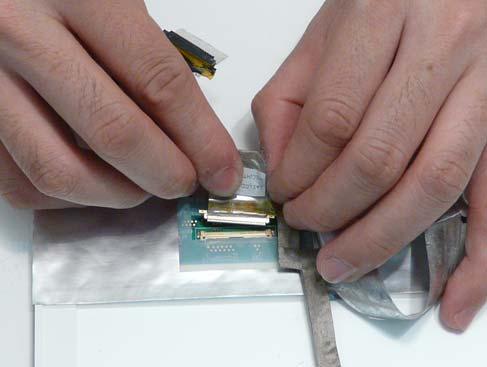

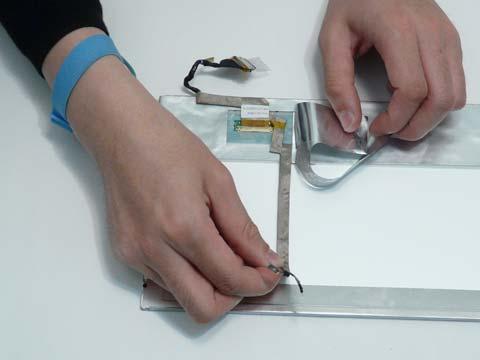

6. Hold the adhesive tape clear of the LCD Panel and disconnect the LCD cable as shown.

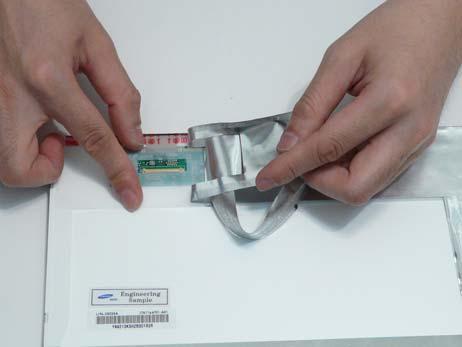

7. Remove the cable from the LCD Panel.

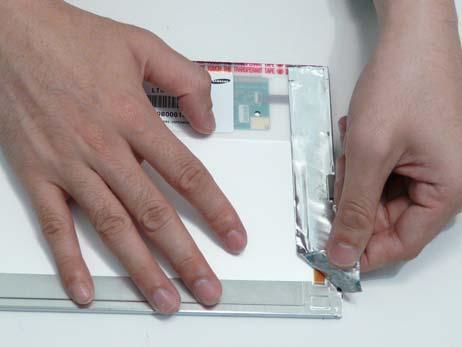

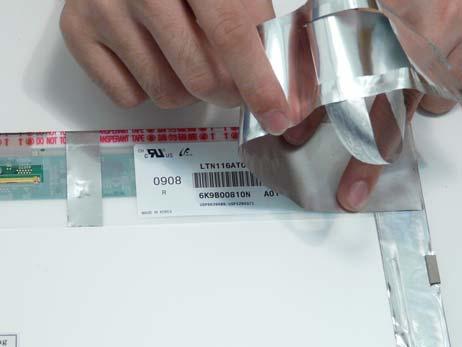

IMPORTANT: If the LCD Panel is replaced, remove the protective strips from the defective panel as shown and reuse them on the replacement panel. See “Replacing the LCD Cable and Brackets” on page 99. NOTE: The vertical strip shown in the final image may appear on the right of the panel for some models.
