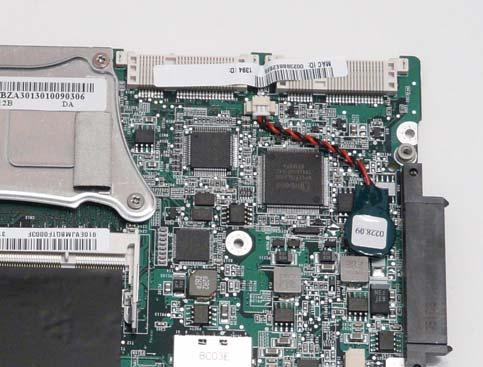

Removing the RTC Battery

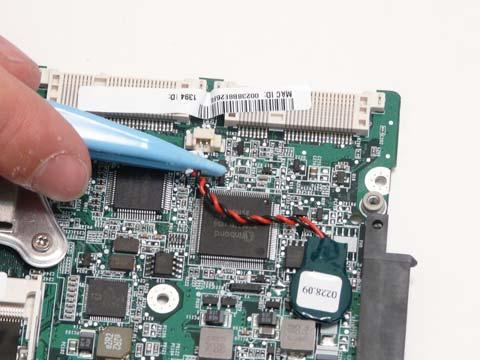

IMPORTANT: Follow local regulations for disposal of all batteries. 1. See “Removing the Mainboard” on page 82. 2. Disconnect the RTC Battery as shown.

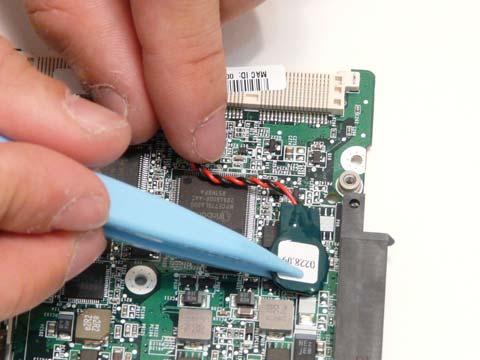

3. Lift the battery upward to detach the adhesive.

4. Attach the replacement battery to the Mainboard and connect the cable as shown.
