Removing the LCD Panel

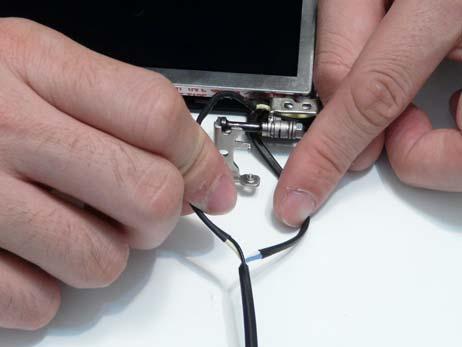

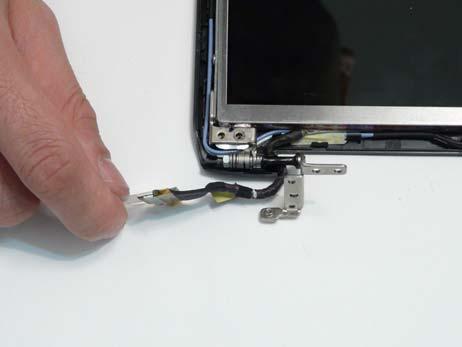

1. See “Removing the Camera Board” on page 89. 2. Release the LCD cables from the hinge brackets as shown.

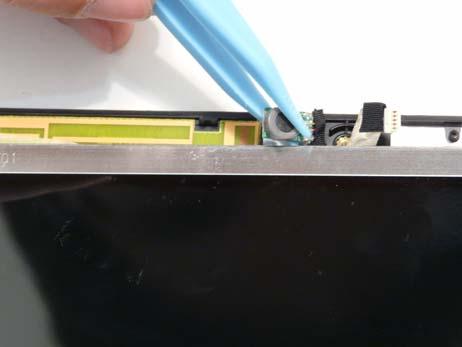

3. Lift the Microphone Module upward to detach the adhesive holding it in place.

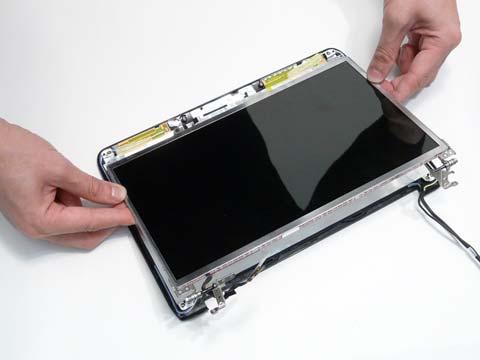

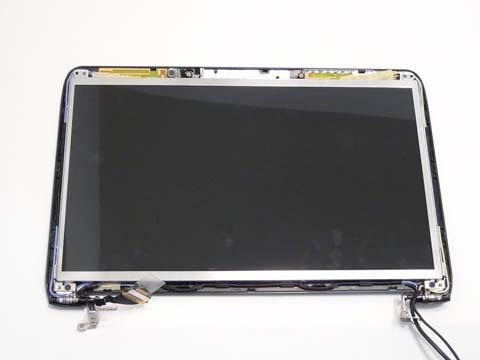

4. Remove the two screws securing the LCD Panel to the LCD Module

Step

Size

LCD Panel M2*2 2

Quantity Screw Type
